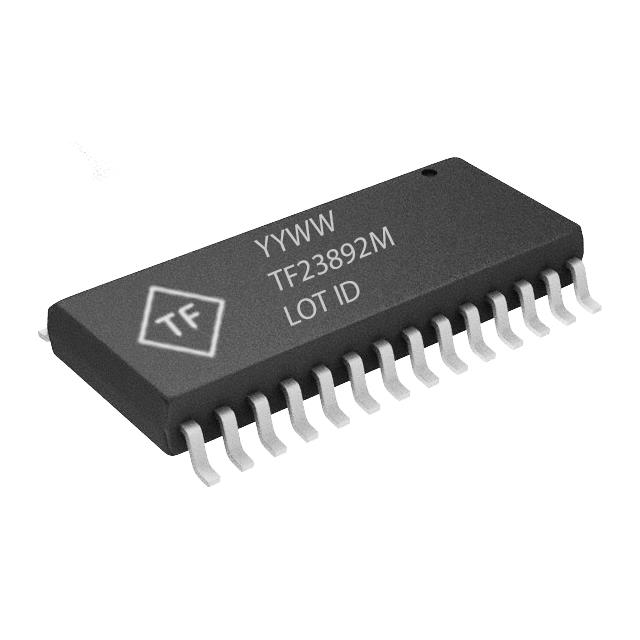

TF23892M
ActiveTF Semiconductor Solutions
600V, 3-PHASE GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TF23892M
ActiveTF Semiconductor Solutions
600V, 3-PHASE GATE DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TF23892M |
|---|---|
| Channel Type | 3-Phase |
| Current - Peak Output (Source, Sink) [custom] | 650 mA |
| Current - Peak Output (Source, Sink) [custom] | 350 mA |
| Driven Configuration | Half-Bridge |
| Gate Type | N-Channel MOSFET, IGBT |
| Input Type | Inverting |
| Mounting Type | Surface Mount |
| Number of Drivers | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Rise / Fall Time (Typ) [custom] | 40 ns |
| Rise / Fall Time (Typ) [custom] | 25 ns |
| Supplier Device Package | 28-SOIC |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| Tape & Reel (TR) | 1500 | $ 0.95 | ||
| 3000 | $ 0.89 | |||
| 7500 | $ 0.85 | |||
| 10500 | $ 0.82 | |||
Description
General part information
TF23892M
Half-Bridge Gate Driver IC Inverting 28-SOIC
