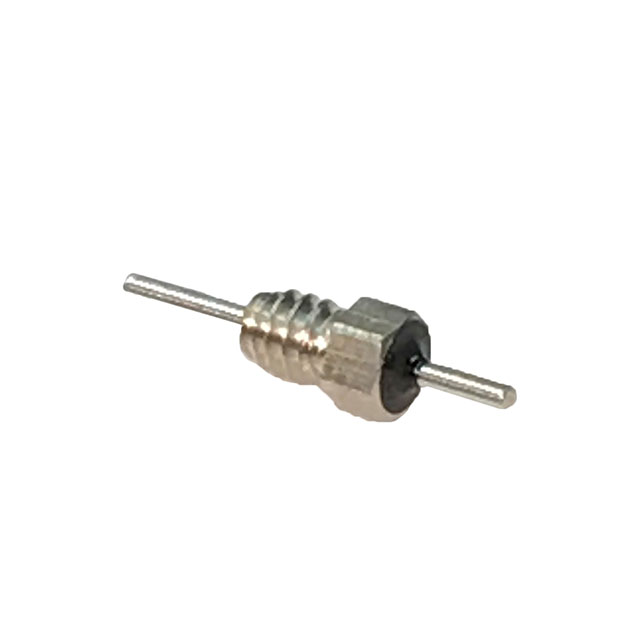

B3C273A
ActiveEMI FILTER COMPANY
FILTER, 4-40 MINI, 27,000PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B3C273A
ActiveEMI FILTER COMPANY
FILTER, 4-40 MINI, 27,000PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B3C273A |
|---|---|
| Capacitance | 0.027 µF |
| Current | 10 A |
| Insertion Loss | 42 dB |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension [diameter] | 0.125 in |
| Size / Dimension [diameter] | 3.17 mm |
| Size / Dimension [x] | 0.244 " |
| Size / Dimension [x] | 6.2 mm |
| Temperature Coefficient | X7R |
| Tolerance [Max] | 100 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.49 | |
| 25 | $ 11.25 | |||
| 50 | $ 8.99 | |||
| 100 | $ 6.75 | |||
| 250 | $ 5.63 | |||
| 500 | $ 4.94 | |||
| 1000 | $ 4.50 | |||
| 2500 | $ 4.28 | |||
| 5000 | $ 4.05 | |||
Description
General part information
B3C273A
0.027 µF Feed Through Capacitor 50V 10 A Axial, Bushing
