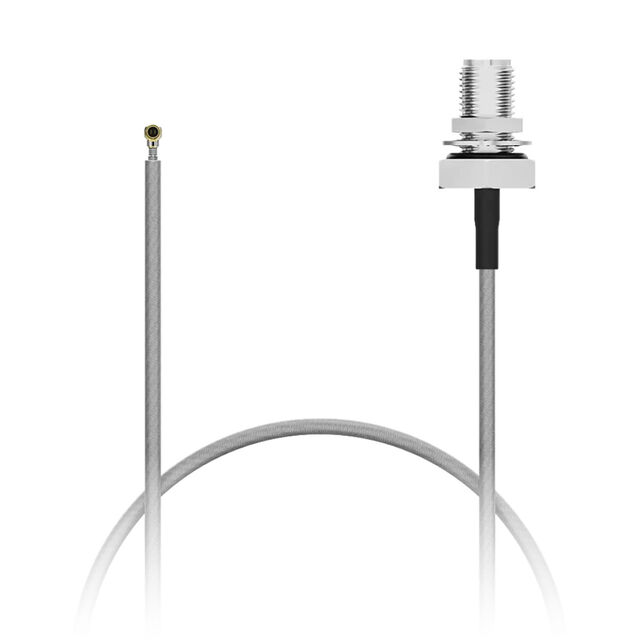

CAB577RF-0200-A-1-E
ActiveGCT (Gradconn)
COAX CBL MHF4L TO SMA 7.8"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAB577RF-0200-A-1-E
ActiveGCT (Gradconn)
COAX CBL MHF4L TO SMA 7.8"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAB577RF-0200-A-1-E |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF4L Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Frequency - Max [Max] | 6000 MHz |
| Ingress Protection | IP68/69K - Dust Tight, Water Resistant, Waterproof |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF4L to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 500 | $ 10.80 | |
Description
General part information
CAB577RF-0200-A-1-E
Cable Assembly Coaxial I-PEX MHF4L to SMA 1.37mm OD Coaxial Cable 7.874" (200.00mm)
