FSM50E
ActiveMARATHON SPECIAL PRODUCTS
FUSEHOLDER, PANEL MOUNT, 1KV, 1.2KA, SEMI CONDUCTOR
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | FSM50E |
|---|---|
| Contact Finish | Zinc |
| Contact Material | Steel |
| Current Rating (Amps) | 1200 A |
| Fuse Size [x] | 38.1 mm |
| Fuse Size [x] | 1.5 " |
| Fuse Size [y] | 2.75 " |
| Fuse Size [y] | 69.85 mm |
| Fuse Type | Bolt Down |
| Fuseholder Type | Holder |
| Mounting Type | Chassis Mount |
| Number of Circuits | 1 |
| Orientation | Horizontal |
| Termination Style | Screw Terminal |
| Voltage | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FSM50E

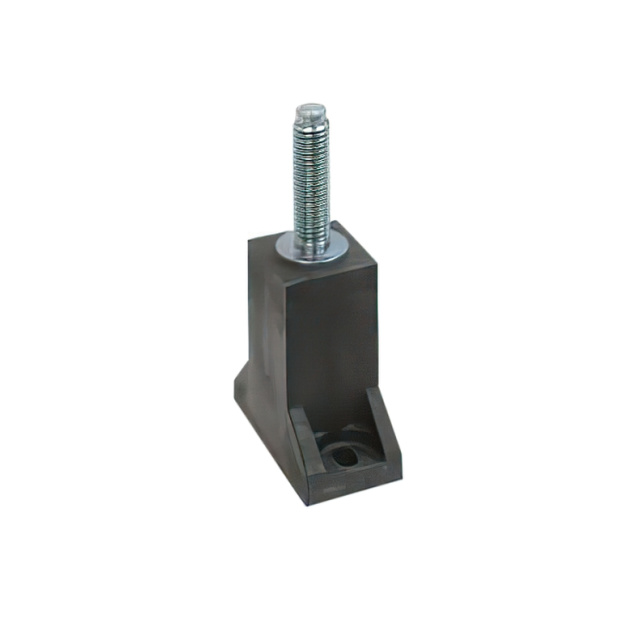

The FSM50E is a semiconductor Fuseholder with thermoplastic insulator base. It has zinc plated steel stud, nuts and Belleville washers.
