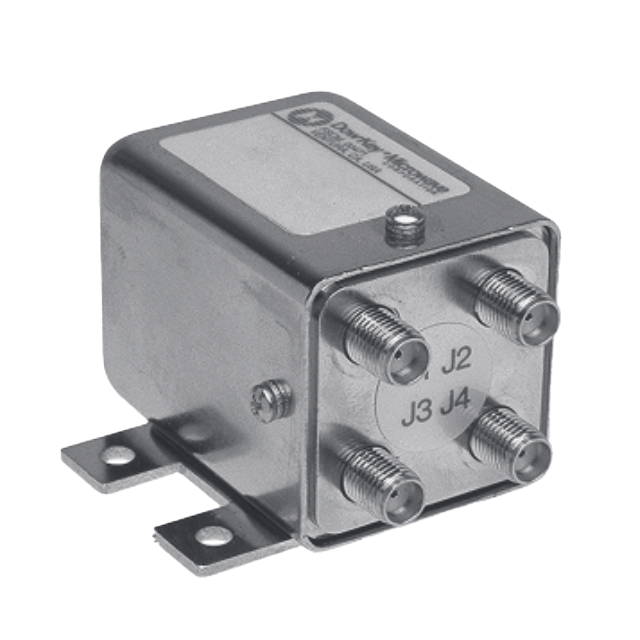

411CJ-420832A
ActiveDow-Key Microwave Corporation
DPDT LATCHING SMA 0-18GHZ 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
411CJ-420832A
ActiveDow-Key Microwave Corporation
DPDT LATCHING SMA 0-18GHZ 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 411CJ-420832A |
|---|---|
| Circuit | DPDT |
| Frequency Range [Max] | 18 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Insertion Loss [Max] | 0.4 dB |
| Isolation [Min] | 60 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Supplier Device Package | Module |
| Test Frequency | 18 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 14 V |
| Voltage - Supply [Min] | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 5 | $ 1157.00 | |
| 15 | $ 1034.00 | |||
| 25 | $ 1000.00 | |||
Description
General part information
411CJ-420832A
RF Switch IC General Purpose DPDT 50Ohm Module
