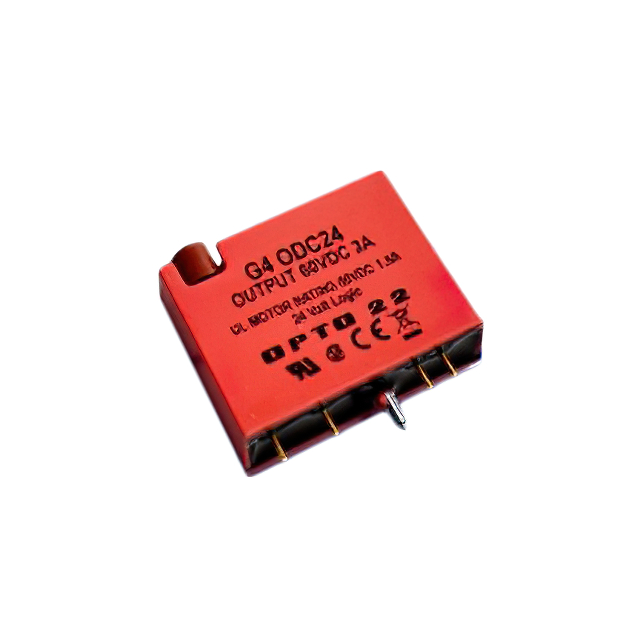

G4ODC24
ActiveOPTO 22
DC OUTPUT MODULE 5–60 VDC, 24 VDC LOGIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
G4ODC24
ActiveOPTO 22
DC OUTPUT MODULE 5–60 VDC, 24 VDC LOGIC
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | G4ODC24 |
|---|---|
| Color | Red |
| Current - Input | 18 mA |
| Current - Output | 3 A |
| Features | Status LED(s), Hold Down Screw |
| Style | G4 |
| Turn Off Time | 700 µs |
| Type | DC Output Module |
| Voltage - Input | 24 V |
| Voltage - Output [Max] | 60 VDC |
| Voltage - Output [Min] | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G4ODC24
The G4ODC24 is a Digital DC Output Module is used to control or switch DC loads. This G4-series module provides up to 4000V of isolation (transient) between field devices and control logic. Typical applications for DC output modules include switching loads such as DC relays, solenoids, motor starters, lamps and indicators.
