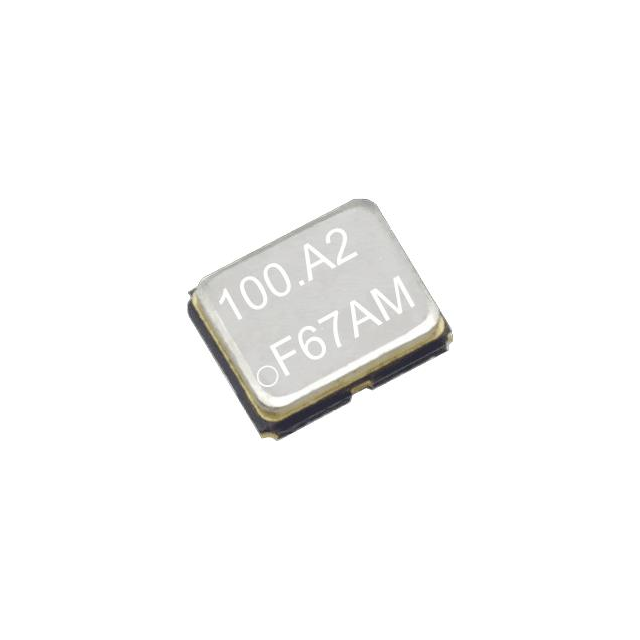

SG-8018CG 133.0000M-TJHPA0
ActiveEPSON
XTAL OSC XO 133.0000MHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SG-8018CG 133.0000M-TJHPA0
ActiveEPSON
XTAL OSC XO 133.0000MHZ CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-8018CG 133.0000M-TJHPA0 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 3.5 mA |
| Current - Supply (Max) [Max] | 8.1 mA |
| Frequency | 133 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.56 | |
Description
General part information
SG-8018CG 133.0000M-TJHPA0
133 MHz XO (Standard) CMOS Oscillator 1.62V ~ 3.63V Enable/Disable 4-SMD, No Lead
