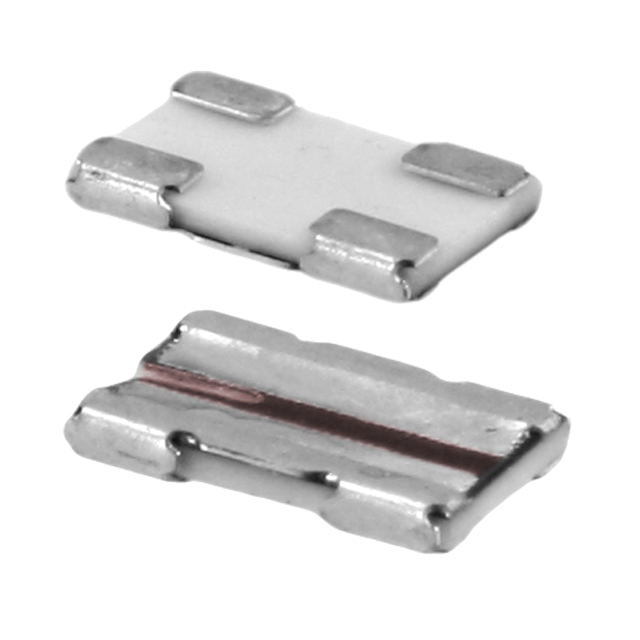

Y08500R01600J9R
ActiveVPG Foil Resistors
RES 0.016 OHM 1/2W 2516 WIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Y08500R01600J9R
ActiveVPG Foil Resistors
RES 0.016 OHM 1/2W 2516 WIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Y08500R01600J9R |
|---|---|
| Features | Current Sense, Non-Inductive, Moisture Resistant |
| Height - Seated (Max) [Max] | 1.02 mm |
| Height - Seated (Max) [Max] [z] | 0.04 " |
| Number of Terminations | 4 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Wide 2516 (6440 Metric), 1625 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 16 mOhms |
| Size / Dimension [x] | 0.16 in |
| Size / Dimension [x] | 4.06 mm |
| Size / Dimension [y] | 0.25 in |
| Size / Dimension [y] | 6.35 mm |
| Supplier Device Package | SMD |
| Temperature Coefficient | 2 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 7.61 | |
Description
General part information
Y08500R01600J9R
16 mOhms ±5% 0.5W, 1/2W Chip Resistor Wide 2516 (6440 Metric), 1625 Current Sense, Moisture Resistant, Non-Inductive Metal Foil
