E520CB520
ActiveAC WORKS®
1FT NEMA 5-20 OUTLET EXTENDER
Deep-Dive with AI
Search across all available documentation for this part.
E520CB520
ActiveAC WORKS®
1FT NEMA 5-20 OUTLET EXTENDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E520CB520 |
|---|---|
| 1st Connector | NEMA 5-20P |
| 2nd Connector | NEMA 5-20R |
| Cord Type | STW |
| Current Rating (Amps) | 20 A |
| Features | 20 Amp Breaker |
| Length | 304.8 mm |
| Length | 1 ft |
| Number of Conductors | 3 |
| Shielding | Unshielded |
| Style | Male Plug to Female Plug |
| Voltage Rating | 125 VDC |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 20.39 | |
| 5 | $ 20.08 | |||
| 10 | $ 19.78 | |||
| 25 | $ 19.37 | |||
| 100 | $ 18.35 | |||
| 250 | $ 17.33 | |||
| 500 | $ 16.31 | |||
Description
General part information
E520CB520

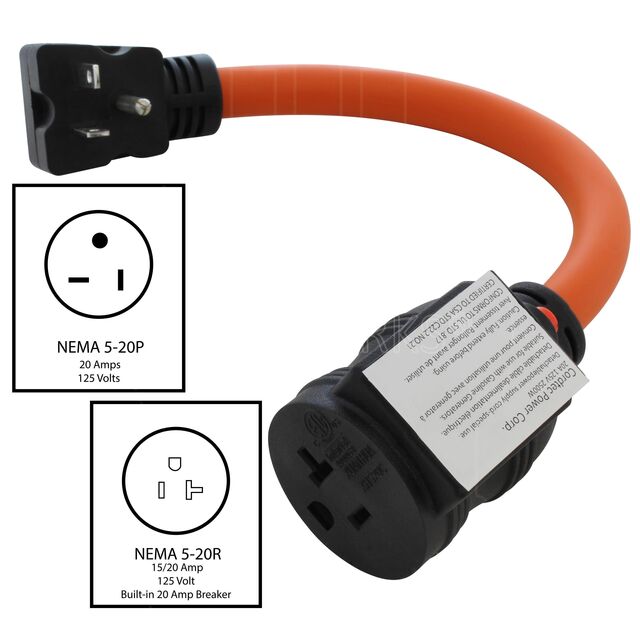

1.00' (304.8mm) Power Cord Orange NEMA 5-20P To NEMA 5-20R STW
Documents
Technical documentation and resources
No documents available
