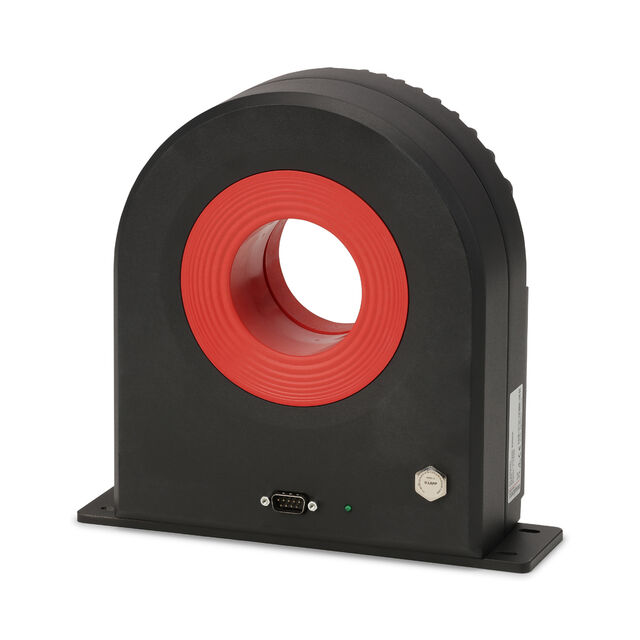

DL2000ID
ActiveDanisense A/S
CURRENT TRANSDUCER 2000A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DL2000ID
ActiveDanisense A/S
CURRENT TRANSDUCER 2000A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DL2000ID |
|---|---|
| Current - Sensing | 2000 A |
| Current - Supply (Max) [Max] | 185 mA |
| For Measuring | AC/DC |
| Frequency [Max] | 300 kHz |
| Frequency [Min] | DC |
| Linearity | 0.0001 % |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Current, Ratiometric |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensor Type | Flux Gate, Closed Loop |
| Voltage - Supply [Max] | 15.75 V |
| Voltage - Supply [Min] | -14.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4682.53 | |
Description
General part information
DL2000ID
Current Sensor 2000A 1 Channel Flux Gate, Closed Loop Bidirectional Module, Single Pass Through
