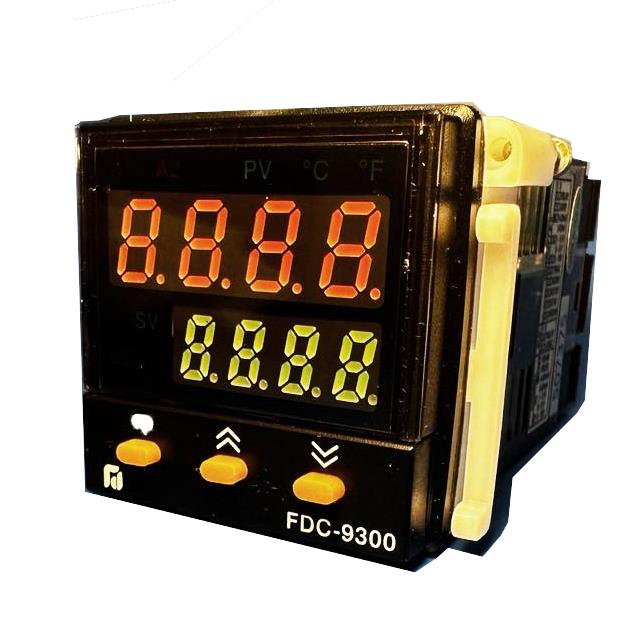

FDC-9300-413000
ActiveFuture Design Controls
CONTROLLER - TEMPERATURE, PROCES
Deep-Dive with AI
Search across all available documentation for this part.
FDC-9300-413000
ActiveFuture Design Controls
CONTROLLER - TEMPERATURE, PROCES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FDC-9300-413000 |
|---|---|
| Control Method | On/Off, Proportional (PID) |
| Display Characters - Height | 8 mm, 0.394 in, 0.315 in, 10 mm |
| Display Type | LED - Green, Red Characters |
| Features | Sensor Fault Detection, Alarm Signaling, Auto-Tuning |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Input Range [Max] | 1800 °C, 150 mV, 20 mA, 10 V |
| Input Range [Min] | -250 °C, 0 V, 0 A |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Output Type | Analog |
| Panel Cutout Dimensions [x] | 45.5 mm |
| Panel Cutout Dimensions [y] | 45 mm |
| Termination Style | Screw Terminal |
| Type | Process, Temperature Controller (RTD, Voltage, Current, Type B,C, E, J, K, P, R, S, T) |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 90 VAC |
| Weight | 150.14 g |
| Weight | 0.331 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 319.00 | |
| 6 | $ 309.00 | |||
| 11 | $ 303.00 | |||
| 16 | $ 287.00 | |||
| 26 | $ 271.00 | |||
Description
General part information
FDC-9300-413000
Process, Temperature Controller (RTD, Voltage, Current, Type B,C, E, J, K, P, R, S, T) 90 ~ 264VAC Panel Mount
