90-00123-C0
ActivePrecision Design Associates, Inc

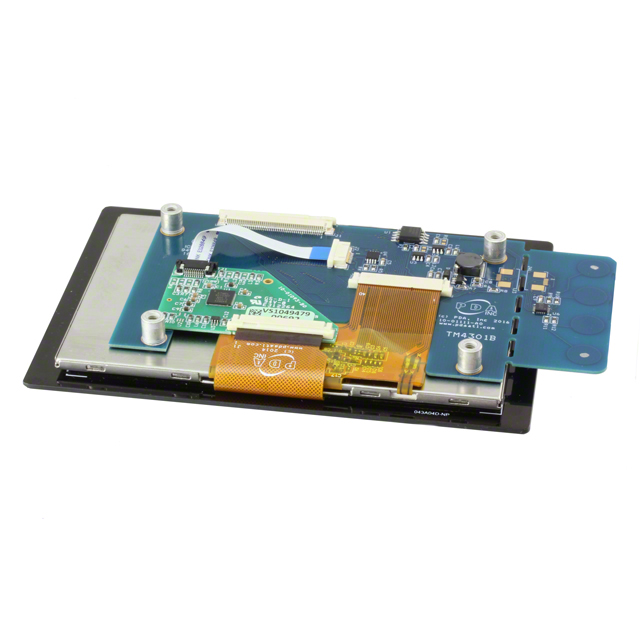

TOUCHSCREEN MODULE TM4301B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90-00123-C0
ActivePrecision Design Associates, Inc
TOUCHSCREEN MODULE TM4301B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 90-00123-C0 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 109.22 mm |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 480 |
| Dot Pixels [y] | 272 |
| Graphics Color | Green, Red, Blue |
| Interface | I2C |
| Touchscreen | Capacitive |
| Viewing Area [x] | 96 mm |
| Viewing Area [y] | 54.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 103.78 | |
| 10 | $ 96.58 | |||
| 100 | $ 94.69 | |||
Description
General part information
90-00123-C0
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C 4.3" (109.22mm) 480 x 272
