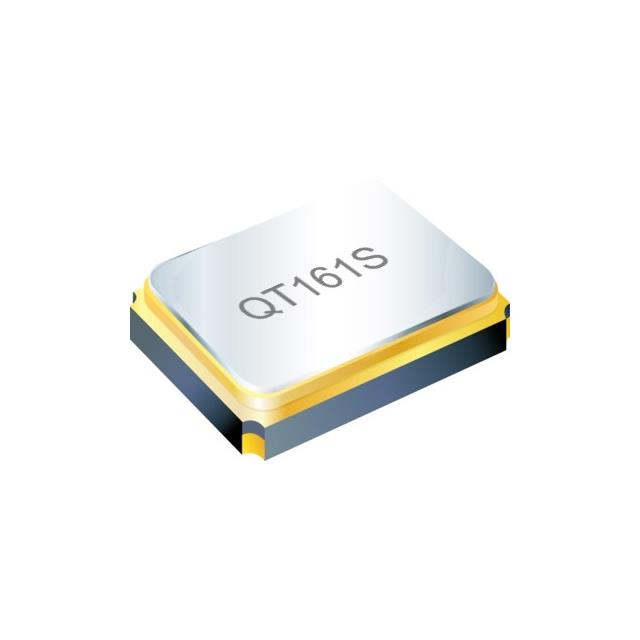

QT161S-37.400MAAV-T
ActiveQST
1.6X1.2 SEAM SEAL MHZ QUARTZ XTA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QT161S-37.400MAAV-T
ActiveQST
1.6X1.2 SEAM SEAL MHZ QUARTZ XTA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QT161S-37.400MAAV-T |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 37.4 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.016 in |
| Height - Seated (Max) [Max] | 0.4 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.69 | |
| 10 | $ 0.60 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.32 | |||
| 3000 | $ 0.28 | |||
| 10000 | $ 0.25 | |||
| 25000 | $ 0.24 | |||
Description
General part information
QT161S-37.400MAAV-T
37.4 MHz ±30ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
