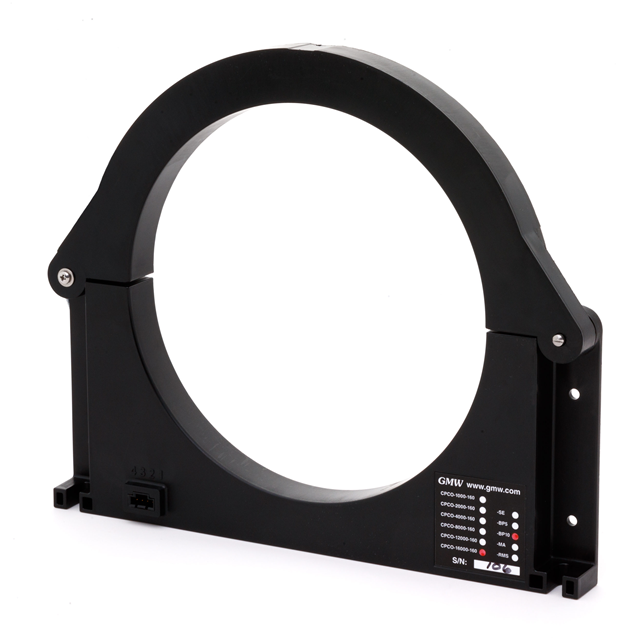

CPCO-12000-160-RMS
ActiveGMW Associates
DC-AC CURRENT PROBE, CLAMP-ON, 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CPCO-12000-160-RMS |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 12000 A |
| Current - Supply (Max) [Max] | 80 mA |
| For Measuring | AC/DC |
| Frequency | DC ~ 40kHz |
| Linearity | 0.5 % |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Ratiometric |
| Output [Max] | 3 V |
| Output [Min] | 0 mV |
| Polarization | Bidirectional |
| Response Time | 1 s |
| Sensor Type | Open Loop |
| Voltage - Supply [Max] | 31 V |
| Voltage - Supply [Min] | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1370.00 | |
| 10 | $ 1301.50 | |||
| 24 | $ 1260.40 | |||
| 50 | $ 1205.60 | |||
Description
General part information
CPCO-12000-160-RMS
Current Sensor 12000A 1 Channel Open Loop Bidirectional Box
