110000376
ActiveAmphenol Procom
CXL 150-1LW-SS-R/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
110000376
ActiveAmphenol Procom
CXL 150-1LW-SS-R/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 110000376 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 165 MHz |
| Frequency Group | VHF |
| Frequency Range [Max] | 175 MHz |
| Frequency Range [Min] | 155 MHz |
| Gain | 2.2 dBi |
| Height (Max) [Max] | 51.181 in |
| Height (Max) [Max] | 1300 mm |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 150 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 290.88 | |
| 10 | $ 272.70 | |||
| 25 | $ 259.06 | |||
Description
General part information
110000376

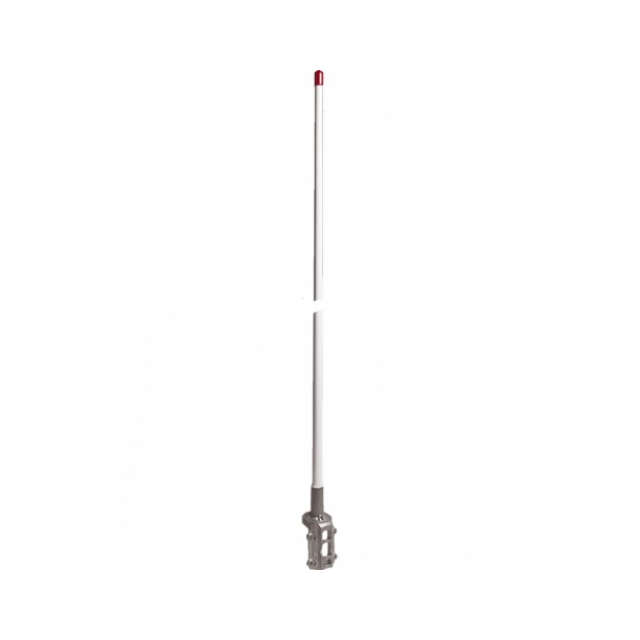

165MHz Whip, Straight RF Antenna 155MHz ~ 175MHz 2.2dBi Bracket Mount
