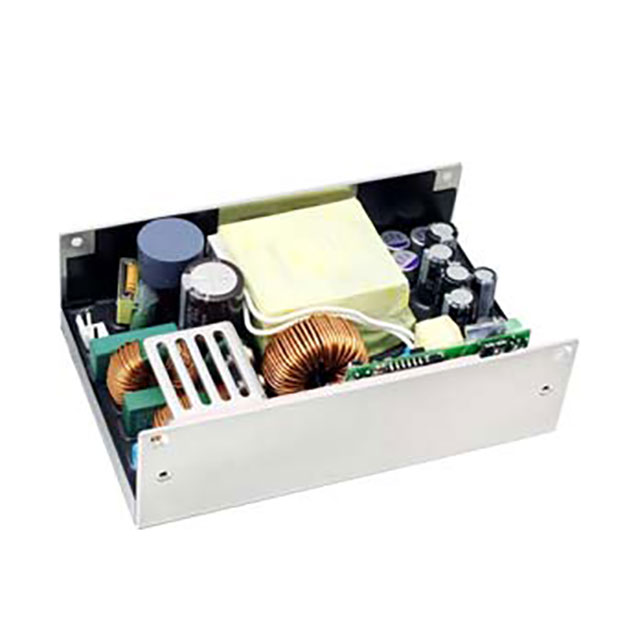

HD500U-124
ActiveDigital Power Corporation
AC/DC CONVERTER 24V 500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HD500U-124
ActiveDigital Power Corporation
AC/DC CONVERTER 24V 500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD500U-124 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, IEC |
| Efficiency | 91 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 129.7 mm |
| Size / Dimension [x] | 5.11 in |
| Size / Dimension [y] | 82.6 mm |
| Size / Dimension [y] | 3.25 " |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 40.6 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 154.81 | |
Description
General part information
HD500U-124
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
