SE120F,GM
ObsoleteSerpac
CASE PLAS GM 8.700"L X 7.450"W
Deep-Dive with AI
Search across all available documentation for this part.
SE120F,GM
ObsoleteSerpac
CASE PLAS GM 8.700"L X 7.450"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE120F,GM |
|---|---|
| Area (L x W) | 418 cm˛ |
| Area (L x W) | 64.8 in˛ |
| Color | Gun Metal |
| Container Type | Case |
| Design | Hinged Lid, Equipment Case |
| Features | Watertight/Airtight, Foam Insert |
| Height [z] | 98.83 mm |
| Height [z] | 3.891 in |
| Material | Plastic, Polypropylene |
| Material Flammability Rating | UL-HB75 |
| Size / Dimension [x] | 220.98 mm |
| Size / Dimension [x] | 8.7 " |
| Size / Dimension [y] | 7.45 in |
| Size / Dimension [y] | 189.23 mm |
| Weight | 725.7 g |
| Weight | 1.6 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SE120F,GM

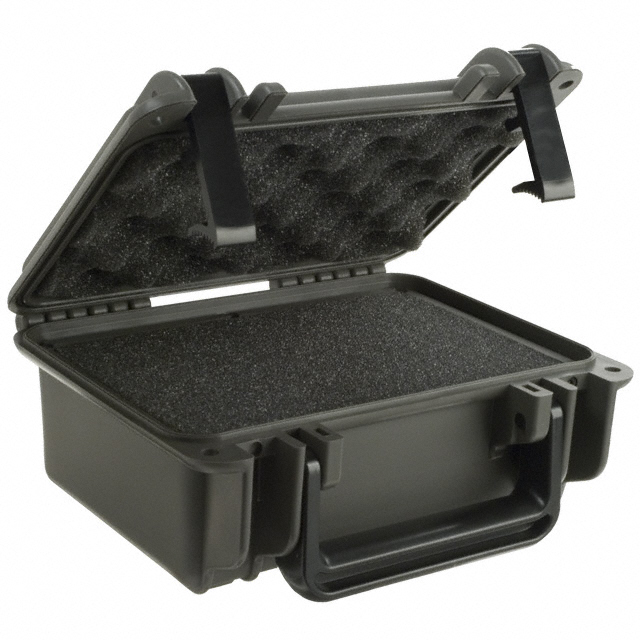

Case Plastic, Polypropylene Gun Metal Equipment Case, Hinged Lid 8.700" L x 7.450" W (220.98mm x 189.23mm) X 3.891" (98.83mm)
Documents
Technical documentation and resources
No documents available
