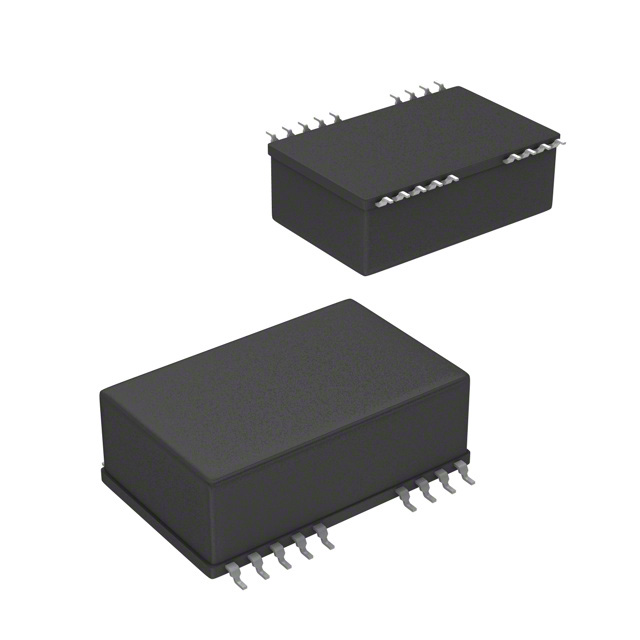

REC3-1205SRW/H4/A/SMD-R
ActiveRECOM Power
ISOLATED DC/DC CONVERTERS - SMD 3W DC/DC 4KV REG 2:1 9-18VIN 5VOUT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
REC3-1205SRW/H4/A/SMD-R
ActiveRECOM Power
ISOLATED DC/DC CONVERTERS - SMD 3W DC/DC 4KV REG 2:1 9-18VIN 5VOUT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | REC3-1205SRW/H4/A/SMD-R |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 600 mA |
| Efficiency | 79 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module, 18 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [y] | 19.9 mm |
| Size / Dimension [y] | 0.78 in |
| Size / Dimension [z] | 11.2 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
REC3-1205SRW/H4/A/SMD-R
Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 18V Input
