401-2208-ROHS
ActiveDow-Key Microwave Corporation

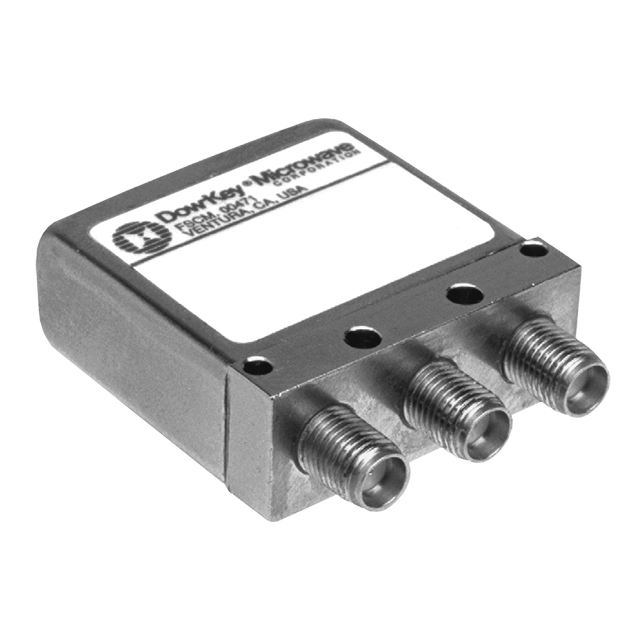

SPDT SMA FAILSAFE 12V 18GHZ ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
401-2208-ROHS
ActiveDow-Key Microwave Corporation
SPDT SMA FAILSAFE 12V 18GHZ ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 401-2208-ROHS |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 18 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.35 dB |
| Isolation [Min] | 60 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Test Frequency | 18 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 14 V |
| Voltage - Supply [Min] | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 170.00 | |
Description
General part information
401-2208-ROHS
RF Switch IC General Purpose SPDT 50Ohm
Documents
Technical documentation and resources
