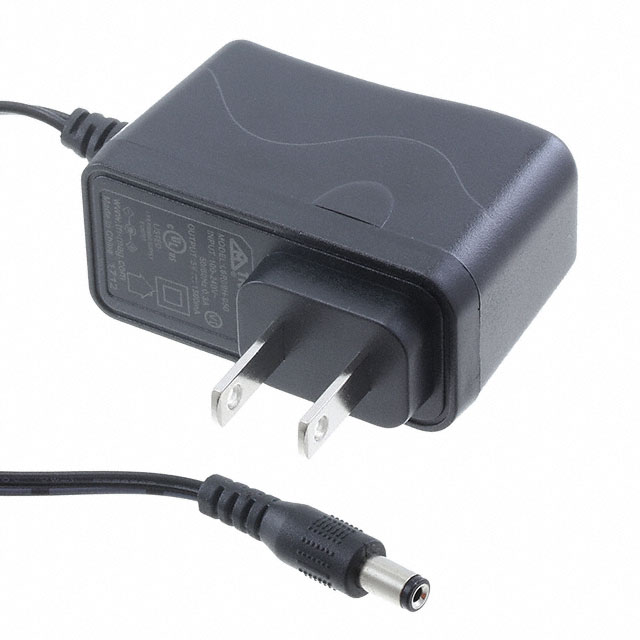

L6R09H-090
ObsoleteTri-Mag, LLC
AC/DC WALL MOUNT ADAPTER 9V 9W
Deep-Dive with AI
Search across all available documentation for this part.
L6R09H-090
ObsoleteTri-Mag, LLC
AC/DC WALL MOUNT ADAPTER 9V 9W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L6R09H-090 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cUL, FCC, UL |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 10 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 9 W |
| Region Utilized | North America |
| Size / Dimension [x] | 56.9 mm |
| Size / Dimension [x] | 2.24 " |
| Size / Dimension [y] | 1.02 " |
| Size / Dimension [y] | 25.9 mm |
| Size / Dimension [z] | 45 mm |
| Size / Dimension [z] | 1.77 in |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
L6R09H-090
9V 9 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
