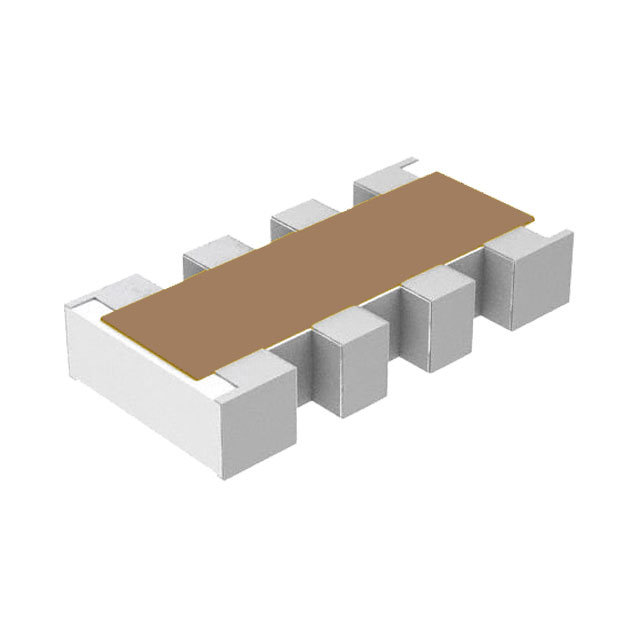

CN34J820CT
ActiveCal-Chip Electronics, Inc.
RESARRAY0603X4 5% 82 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CN34J820CT
ActiveCal-Chip Electronics, Inc.
RESARRAY0603X4 5% 82 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CN34J820CT |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Resistance (Ohms) | 82 Ohms |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.01 | |
Description
General part information
CN34J820CT
82 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
