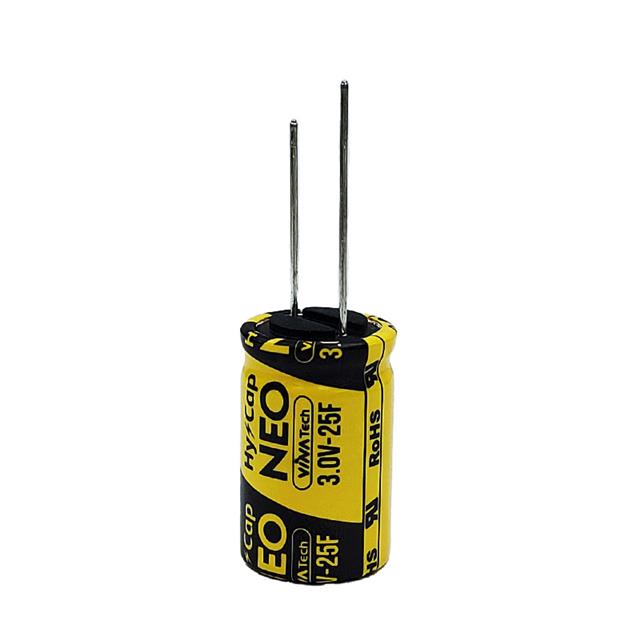

WEC3R0256QG
ActiveVINATech Co LTD
25F 3.0V 16*25 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WEC3R0256QG
ActiveVINATech Co LTD
25F 3.0V 16*25 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WEC3R0256QG |
|---|---|
| Capacitance | 25 F |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Height - Seated (Max) [Max] [z] | 1.043 in |
| Height - Seated (Max) [Max] [z] | 26.5 mm |
| Lead Spacing | 7.5 mm |
| Lead Spacing | 0.295 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.14 | |
| 10 | $ 2.76 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.03 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.64 | |||
| 2500 | $ 1.54 | |||
| 5000 | $ 1.48 | |||
Description
General part information
WEC3R0256QG
25 F (EDLC) Supercapacitor 3 V Radial, Can 25mOhm @ 1kHz 1000 Hrs @ 65°C
