WRFI0603-S-7N5GT-CT
ActiveVenkel

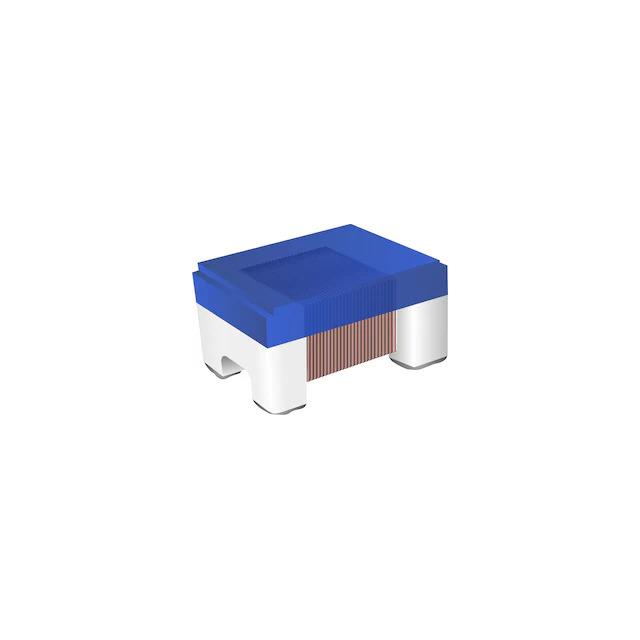

WIREWOUND RF INDUCTOR,0603,7.5NH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WRFI0603-S-7N5GT-CT
ActiveVenkel
WIREWOUND RF INDUCTOR,0603,7.5NH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WRFI0603-S-7N5GT-CT |
|---|---|
| Current Rating (Amps) | 700 mA |
| DC Resistance (DCR) | 106 mOhm |
| Frequency - Self Resonant | 2.35 GHz |
| Height - Seated (Max) [Max] | 1.02 mm |
| Height - Seated (Max) [Max] [z] | 0.04 " |
| Inductance | 7.5 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 250 MHz, 28 |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [x] | 0.071 in |
| Size / Dimension [y] | 0.044 in |
| Size / Dimension [y] | 1.12 mm |
| Supplier Device Package | 1608 Metric |
| Supplier Device Package | 0603 |
| Tolerance | 2 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 100 | $ 0.19 | |
| 500 | $ 0.17 | |||
| 1000 | $ 0.14 | |||
Description
General part information
WRFI0603-S-7N5GT-CT
7.5 nH Wirewound Inductor 700 mA 106mOhm 0603 (1608 Metric)
