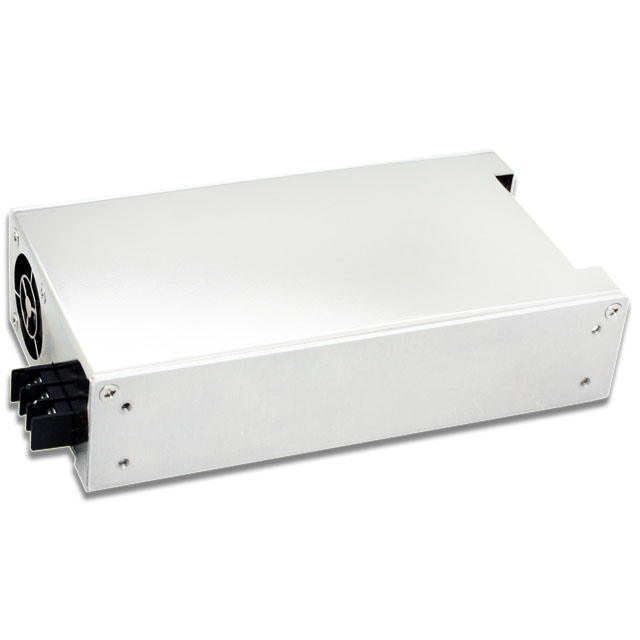

AQF700-24S
ActiveARCH Electronics Corp
AC/DC CONVERTER 24V 700W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AQF700-24S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 29.16 A |
| Efficiency | 91 % |
| Features | PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 700 W |
| Size / Dimension [x] | 170.2 mm |
| Size / Dimension [x] | 6.7 in |
| Size / Dimension [y] | 3.66 in |
| Size / Dimension [y] | 93 mm |
| Size / Dimension [z] | 40.9 mm |
| Size / Dimension [z] | 1.61 " |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 288.93 | |
| 10 | $ 268.02 | |||
| 50 | $ 222.64 | |||
| 100 | $ 212.75 | |||
Description
General part information
AQF700-24S
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
