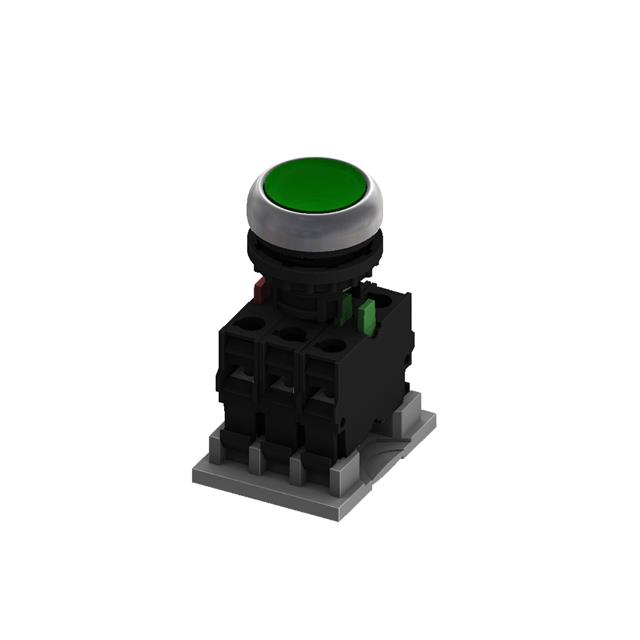

M22FP-ASB20-E30-G
ActiveMoujen
FLAT PB-ALT-2A-LED-GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M22FP-ASB20-E30-G
ActiveMoujen
FLAT PB-ALT-2A-LED-GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M22FP-ASB20-E30-G |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | DPST |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 3 A, 6 A |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) [Max] | 30 VAC/DC |
| Illumination Voltage (Nominal) [Min] | 12 VAC/DC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 16.72 | |
| 400 | $ 13.83 | |||
Description
General part information
M22FP-ASB20-E30-G
Pushbutton Switch DPST Standard, Illuminated Panel Mount, Front
