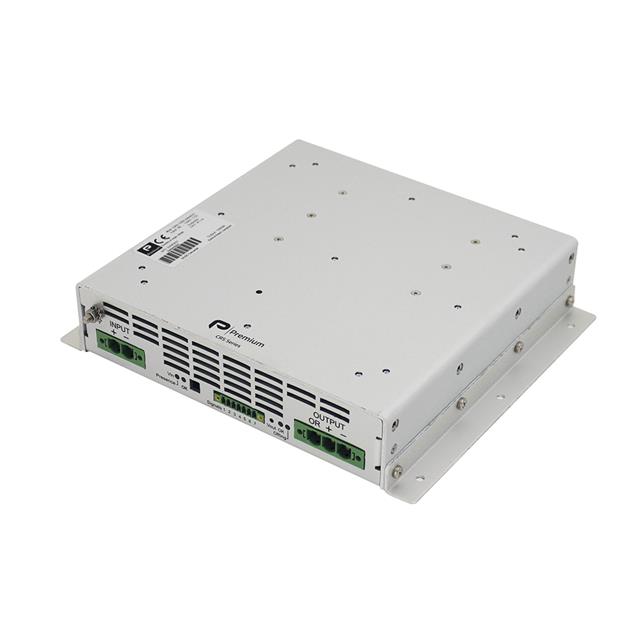

6492COH
ActivePremium PSU
CRS-1000 24/110 2 FANS ORING HOL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6492COH
ActivePremium PSU
CRS-1000 24/110 2 FANS ORING HOL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6492COH |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, CE |
| Current - Output (Max) [Max] | 9.8 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 1078 W |
| Size / Dimension [x] | 268 mm |
| Size / Dimension [x] | 10.55 in |
| Size / Dimension [y] | 8.98 in |
| Size / Dimension [y] | 228 mm |
| Size / Dimension [z] | 54.8 mm |
| Size / Dimension [z] | 2.16 in |
| Standard Number | 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 14.4 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 952.81 | |
Description
General part information
6492COH
Enclosed DC DC Converter 1 Output 110V 9.8A 30V Input
Documents
Technical documentation and resources
