HM78D-1284R7MLFTR
UnknownTT Electronics/BI Magnetics
INDUCT ARRAY 2 COIL 4.7UH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HM78D-1284R7MLFTR
UnknownTT Electronics/BI Magnetics
INDUCT ARRAY 2 COIL 4.7UH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HM78D-1284R7MLFTR |
|---|---|
| Current Rating - Parallel | 7.4 A |
| Current Rating - Series [custom] | 3.6 A |
| Current Saturation - Parallel | 14.9 A |
| Current Saturation - Series | 7.7 A |
| DC Resistance (DCR) - Parallel | 19 mOhm |
| DC Resistance (DCR) - Series | 76 mOhm |
| Height [z] | 8.05 mm |
| Height [z] | 0.317 in |
| Inductance - Connected In Parallel | 4.7 µH |
| Inductance - Connected In Series | 18.8 µH |
| Mounting Type | Surface Mount |
| Number of Coils | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.492 in |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.05 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.82 | |||
Description
General part information

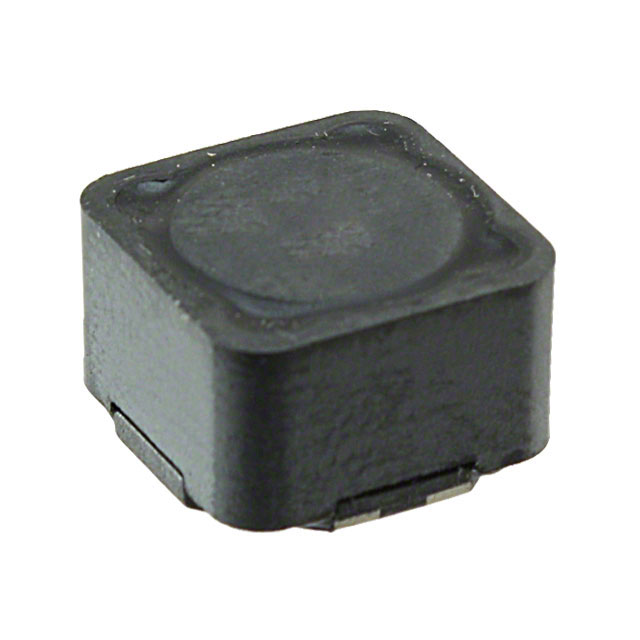

HM78D-1284R7MLFTR
Shielded 2 Coil Inductor Array 18.8 µH Inductance - Connected in Series 4.7 µH Inductance - Connected in Parallel 19mOhm DC Resistance (DCR) - Parallel 7.4 A Nonstandard
