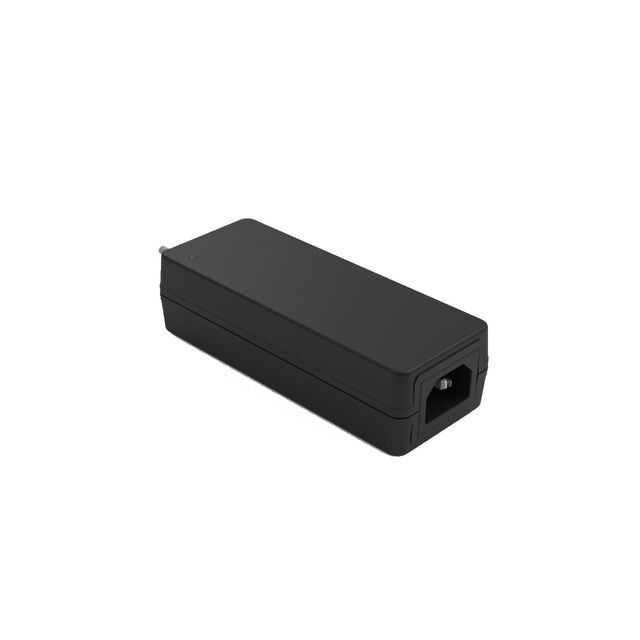

AA65U-120A-R
ActivePhihong USA
DESKTOP AC ADAPTERS 64.92W 12V 5.41A C14 INPUT 2.1X5.5 OUTPUT PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AA65U-120A-R
ActivePhihong USA
DESKTOP AC ADAPTERS 64.92W 12V 5.41A C14 INPUT 2.1X5.5 OUTPUT PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AA65U-120A-R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, UKCA, cUL, CE |
| Cord Length | 47 " |
| Cord Length | 1.2 m |
| Current - Output (Max) [Max] | 5.41 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 62.1 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 65 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [z] | 1.32 in |
| Size / Dimension [z] | 33.5 mm |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.20 | |
| 10 | $ 19.88 | |||
| 25 | $ 18.71 | |||
| 50 | $ 18.17 | |||
| 100 | $ 17.00 | |||
| 250 | $ 16.50 | |||
| 500 | $ 15.60 | |||
Description
General part information
AA65U-120A-R
12V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
