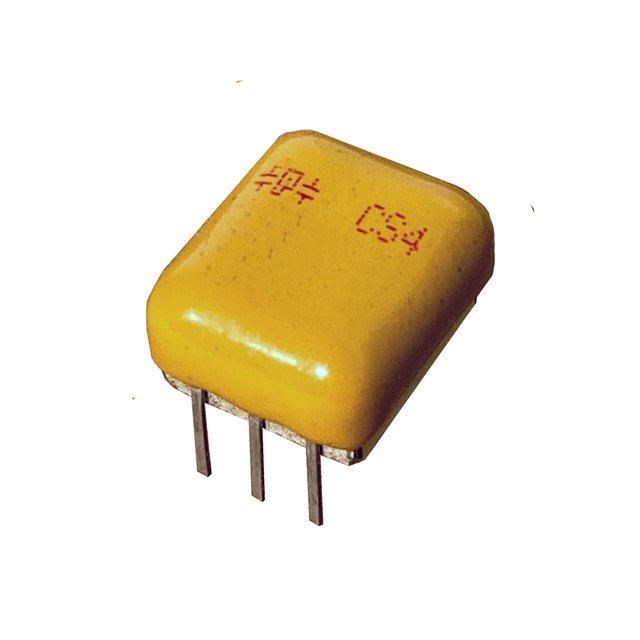

475K100CS4-FA

Active

Paktron

CAPACITOR MLP 4.7UF 100V THRU-HO

Search across all available documentation for this part.

Active

Paktron

CAPACITOR MLP 4.7UF 100V THRU-HO

Technical Specifications

Parameters and characteristics for this part

Specification	475K100CS4-FA

Applications	High Pulse, EMI, DV/DT, RFI Suppression
Capacitance	4.7 µF
Dielectric Material	Polyester, Metallized
ESR (Equivalent Series Resistance)	6 mOhms
Height - Seated (Max) [Max]	6.3 mm
Height - Seated (Max) [Max]	0.248 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-DIP
Size / Dimension [x]	13.3 mm
Size / Dimension [x]	0.524 in
Size / Dimension [y]	12.7 mm
Size / Dimension [y]	0.5 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	80 V
Voltage Rating - DC	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4.7 µF Film Capacitor 80V 100V Polyester, Metallized 6-DIP
