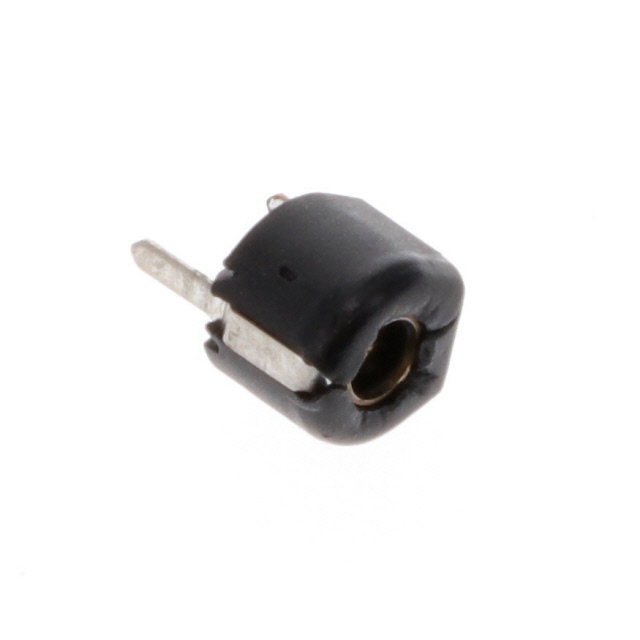

GKG3R015
ActiveEW Electronics
CAP TRIMMER 1-3PF 100V TH
Deep-Dive with AI
Search across all available documentation for this part.
GKG3R015
ActiveEW Electronics
CAP TRIMMER 1-3PF 100V TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GKG3R015 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 3 pF |
| Capacitance Range [Min] | 1 pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Q @ Freq | 1 MHz, 300 |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.63 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.38 | |||
Description
General part information
GKG3R015
1 ~ 3pF Trimmer Capacitor 100 V Top Through Hole
