CML0510-8N2-BNH
ObsoleteDelta Electronics/Cyntec
FIXED IND 8.2NH 230MA 850MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
CML0510-8N2-BNH
ObsoleteDelta Electronics/Cyntec
FIXED IND 8.2NH 230MA 850MOHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CML0510-8N2-BNH |
|---|---|
| Current Rating (Amps) | 0.23 A |
| DC Resistance (DCR) [Max] | 850 mOhm |
| Frequency - Self Resonant | 5 GHz |
| Height - Seated (Max) [Max] [z] | 0.5 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Inductance | 8.2 nH |
| Inductance Frequency - Test | 100 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Q @ Freq | 8 |
| Shielding | Shielded |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Tolerance | 0.1 nH |
| Type | Thin Film |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

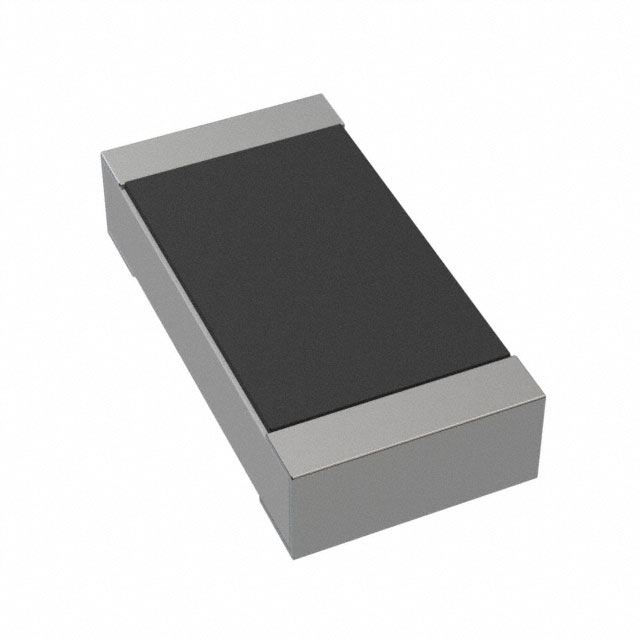

CML0510-8N2-BNH
8.2 nH Shielded Thin Film Inductor 230 mA 850mOhm Max 0402 (1005 Metric)
Documents
Technical documentation and resources
No documents available
