B64290L0659X830
ActiveEPCOS - TDK Electronics
FERRITE CORE TOROID 7UH N30
Deep-Dive with AI
Search across all available documentation for this part.
B64290L0659X830
ActiveEPCOS - TDK Electronics
FERRITE CORE TOROID 7UH N30
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B64290L0659X830 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 0.77 mm⁻¹ |
| Core Type | Toroid |
| Diameter [diameter] | 1.646 " |
| Diameter [diameter] | 41.8 mm |
| Effective Area (Ae) mm² | 125.3 mm² |
| Effective Length (le) mm | 96.29 mm |
| Effective Magnetic Volume (Ve) mm³ | 12070 mm³ |
| Finish | Epoxy |
| Gap | Ungapped |
| Height [z] | 0.677 in |
| Height [z] | 17.2 mm |
| Inductance Factor (Al) | 7 µH |
| Initial Permeability (µi) | 4300 |
| Material | N30 |
| Minimum Core Cross Section (Amin) mm² | 125.3 mm² |
| Tolerance | 25 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.85 | |
| 10 | $ 5.83 | |||
| 25 | $ 4.44 | |||
| 40 | $ 4.31 | |||
| 80 | $ 3.80 | |||
| 240 | $ 3.55 | |||
| 480 | $ 3.52 | |||
Description
General part information
B64290L0659X830

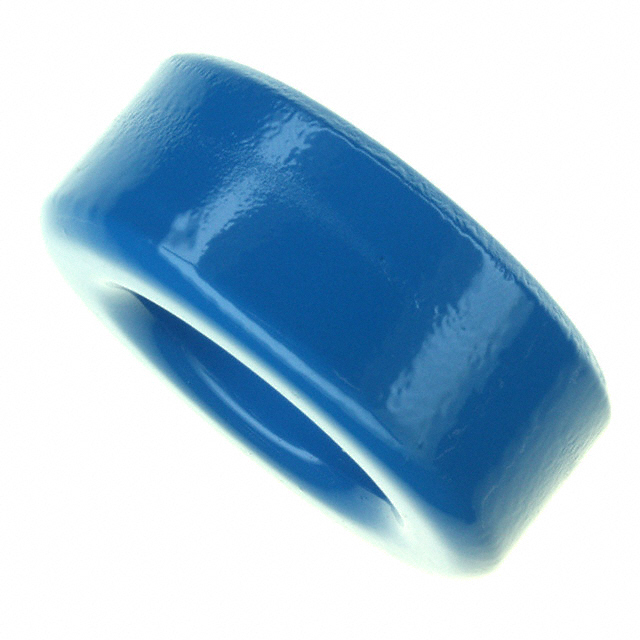

Epoxy N30 Ferrite Core Toroid Type Length Width 1.646" (41.80mm) Diameter 0.677" (17.20mm) Height
