1000570022
UnknownMolex - Temp Flex
CBL RIBN 26COND 0.025 NATU 25'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1000570022
UnknownMolex - Temp Flex
CBL RIBN 26COND 0.025 NATU 25'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000570022 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 38 AWG |
| First Conductor Mark | Blue |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Natural |
| Length | 15.24 m, 7.62 m, 304.8 mm |
| Length | 50 ft, 25 ft, 1 ft |
| Number of Conductors | 26 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
| Ratings | UL Style 20726 |
| Ribbon Width | 16.51 mm |
| Ribbon Width | 0.65 in |
| Shielding | Unshielded |
| Voltage | 150 V |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 166.83 | |
| 5 | $ 135.87 | |||
| 10 | $ 124.69 | |||
| 25 | $ 114.37 | |||
Description
General part information
1000570022

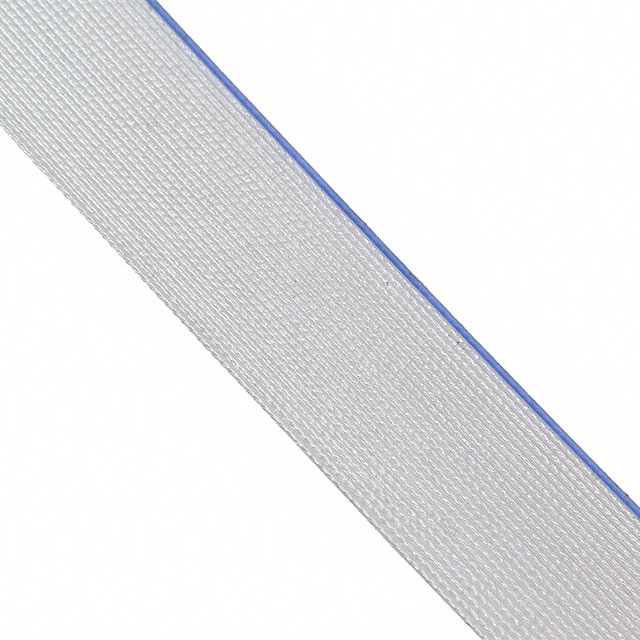

Flat Ribbon Cable Natural 26 Conductors 0.025" (0.64mm) Flat Cable 25.0' (7.62m)
