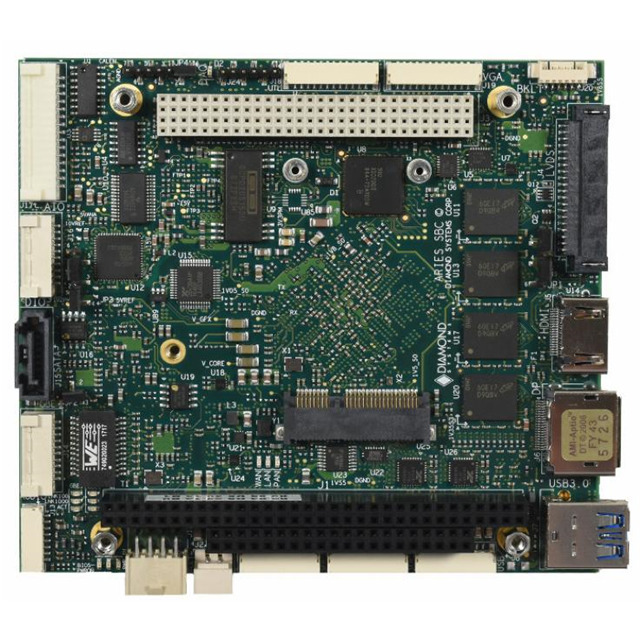

ARS3845-4GN
ActiveDiamond Systems
ARIES BAY TRAL PC/104-PLUS SBC W
Deep-Dive with AI
Search across all available documentation for this part.
ARS3845-4GN
ActiveDiamond Systems
ARIES BAY TRAL PC/104-PLUS SBC W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARS3845-4GN |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel® Atom™ Processor E3845 |
| Digital I/O Lines | 22 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Ethernet | 2 |
| Expansion Site/Bus | Mini-PCIeI, PC/104-Plus |
| Number of Cores | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 8.5 W |
| RAM Capacity/Installed | - |
| RAM Capacity/Installed | 4 GB |
| RS-232 (422, 485) | 4 |
| Size / Dimension [x] | 4.49 in |
| Size / Dimension [x] | 114.04 mm |
| Size / Dimension [y] | 102.1 mm |
| Size / Dimension [y] | 4.02 in |
| Speed | 1.91 GHz |
| Storage Interface | SATA, Flash, mSATA |
| USB | USB 2.0 (3), USB 3.0 (1) |
| Video Outputs | LVDS, VGA, LCD, HDMI, DP |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1260.00 | |
| 5 | $ 1172.00 | |||
Description
General part information
ARS3845-4GN
Single Board Computer 1.91GHz 4 Core -/4GB RAM Intel® Atom™ Processor E3845
Documents
Technical documentation and resources
No documents available
