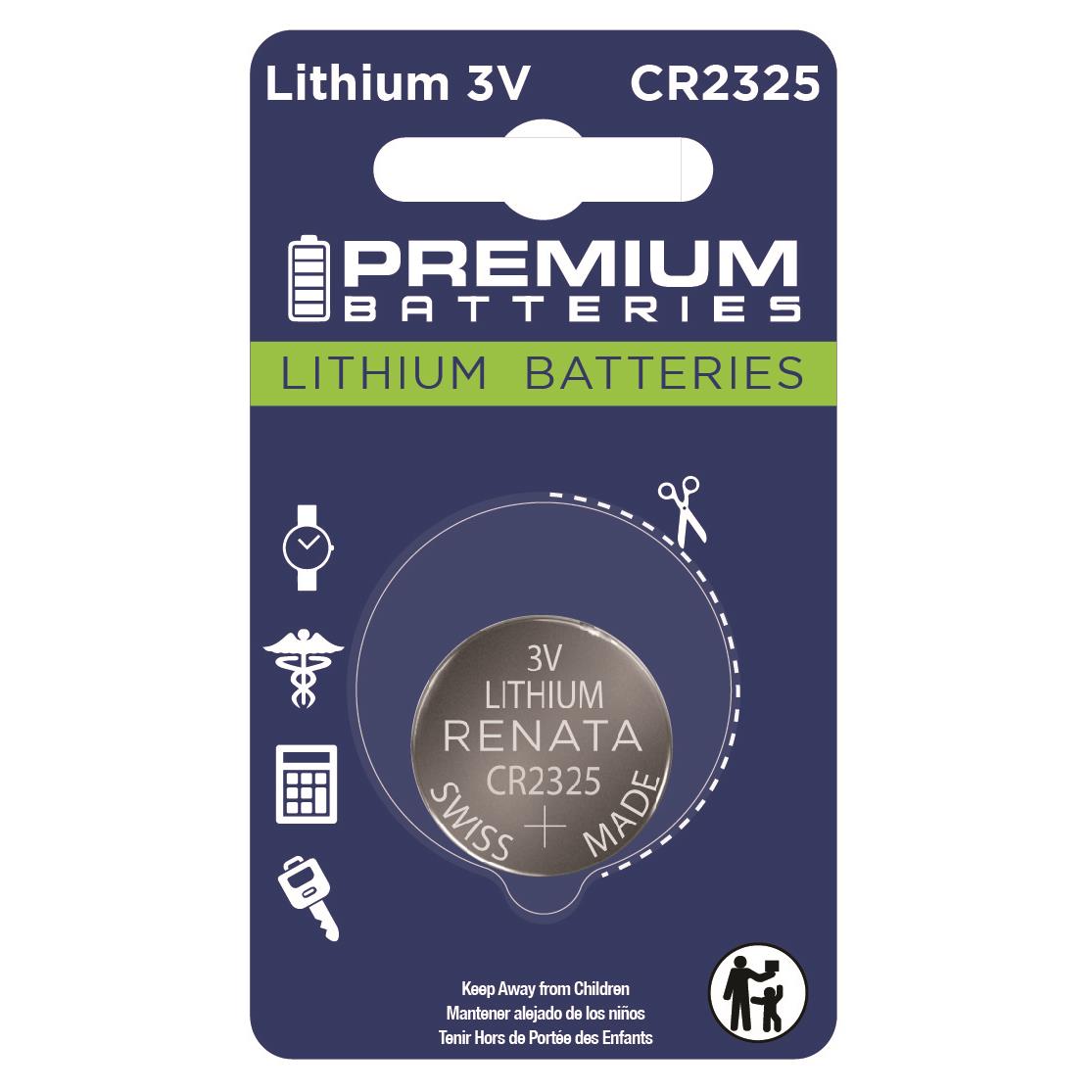

PB-CR2325 BP/1
ActivePremium Batteries
BATTERY LITHIUM 3V COIN 23MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PB-CR2325 BP/1
ActivePremium Batteries
BATTERY LITHIUM 3V COIN 23MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PB-CR2325 BP/1 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size [diameter] | 23 mm |
| Battery Chemistry | Lithium Manganese |
| Size / Dimension [diameter] | 0.91 " |
| Size / Dimension [diameter] | 23.2 mm |
| Size / Dimension [z] | 3.3 mm |
| Size / Dimension [z] | 0.12 in |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 2.10 | |
| 10 | $ 2.05 | |||
| 100 | $ 1.95 | |||
Description
General part information
PB-CR2325 BP/1
Coin, 23.0mm Lithium Manganese 3 V Battery Non-Rechargeable (Primary)
