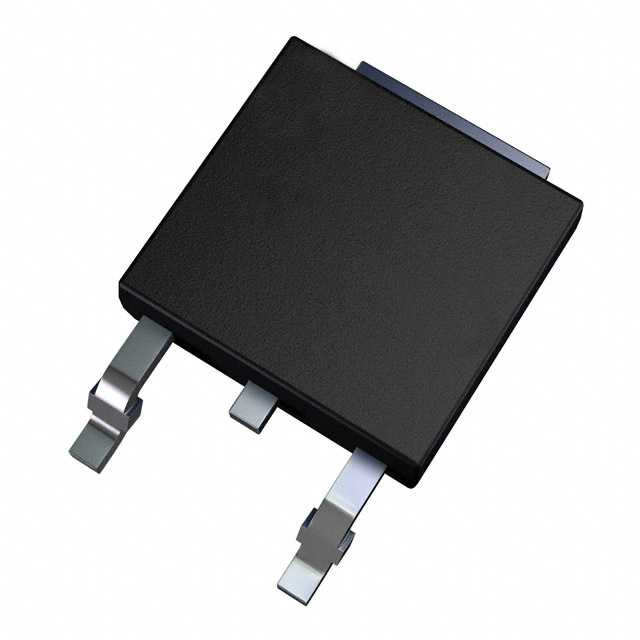

SDURD560
ActiveSMC Diode Solutions
600V, 5A, DPAK, ULTRA FAST RECOV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDURD560
ActiveSMC Diode Solutions
600V, 5A, DPAK, ULTRA FAST RECOV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDURD560 |
|---|---|
| Current - Average Rectified (Io) | 5 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Reverse Recovery Time (trr) | 50 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DPAK |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 2500 | $ 0.11 | ||
| 5000 | $ 0.10 | |||
| 12500 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
| 62500 | $ 0.09 | |||
Description
General part information
SDURD560
Diode 600 V 5A Surface Mount DPAK
