93010
ActiveMISCO

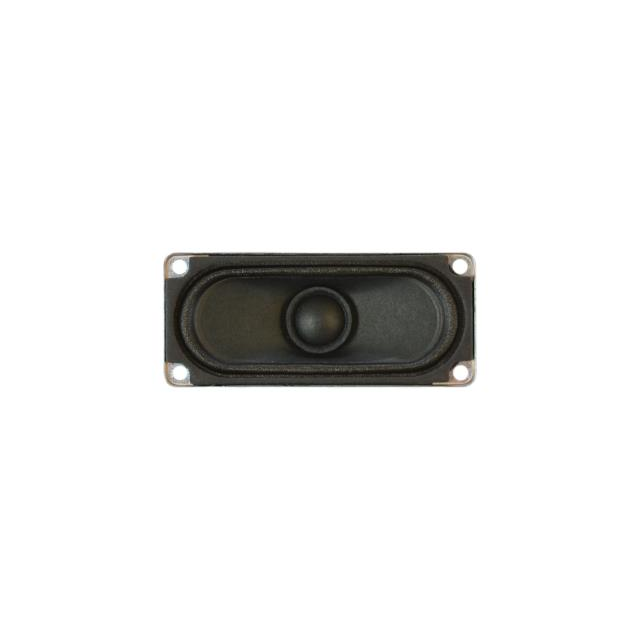

1" X 3" WIDE RANGE SPEAKER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
93010
ActiveMISCO
1" X 3" WIDE RANGE SPEAKER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 93010 |
|---|---|
| Efficiency - dBA | 83 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 592 Hz |
| Frequency Range [Max] | 8 kHz |
| Frequency Range [Min] | 592 Hz |
| Height - Seated (Max) [Max] | 22.6 mm |
| Height - Seated (Max) [Max] [z] | 0.89 in |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 10 W |
| Power - Rated | 5 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 70.21 mm |
| Size / Dimension [x] | 2.764 in |
| Size / Dimension [y] | 30.2 mm |
| Size / Dimension [y] | 1.189 " |
| Technology | Magnetic |
| Termination | Quick Connect |
| Type | Full Range |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.86 | |
Description
General part information
93010
8 Ohms Full Range Speaker 5 W 592 Hz ~ 8 kHz Top Oval, Rectangular Frame
