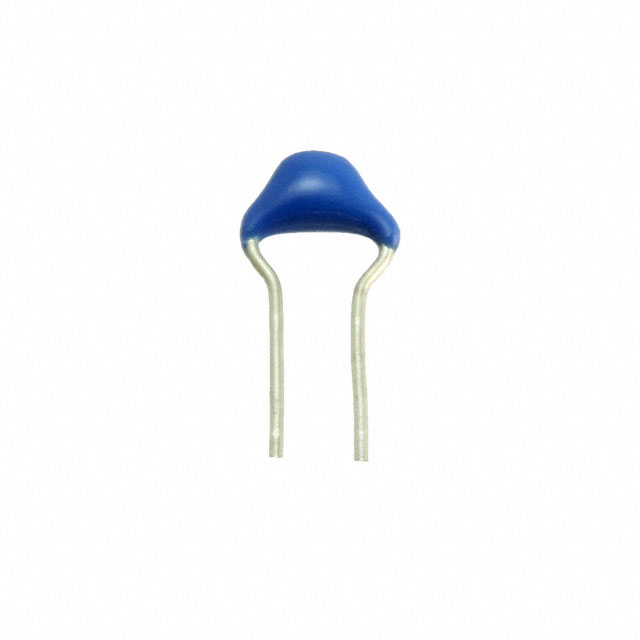

FG18X5R1H105KRT00
ActiveEPCOS - TDK Electronics
CAP CERAMIC 1UF 50V X5R 10% RADIAL 2.5MM 85°C BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FG18X5R1H105KRT00
ActiveEPCOS - TDK Electronics
CAP CERAMIC 1UF 50V X5R 10% RADIAL 2.5MM 85°C BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FG18X5R1H105KRT00 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1 µF |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Lead Spacing | 0.098 in |
| Lead Spacing | 2.5 mm |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 0.098 in |
| Size / Dimension [y] | 2.5 mm |
| Temperature Coefficient | X5R |
| Tolerance | 10 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.35 | |
| 10 | $ 0.23 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| 5000 | $ 0.07 | |||
| 10000 | $ 0.07 | |||
Description
General part information
FG18X5R1H105KRT00
1 µF ±10% 50V Ceramic Capacitor X5R Radial
