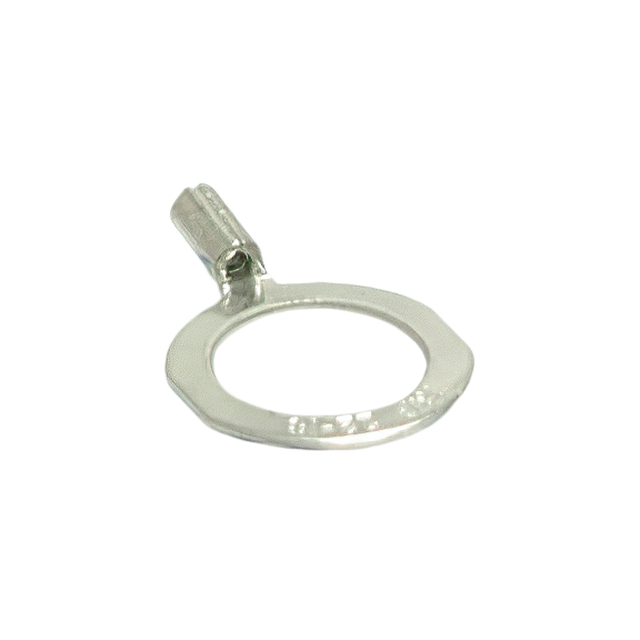

A18-12
ActiveSta-Kon, a T & B Brand
RING TERMINAL, 1/2" STUD, 22-16A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A18-12 |
|---|---|
| Color | Silver |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall [x] | 1.06 " |
| Length - Overall [x] | 26.92 mm |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [y] | 18.29 mm |
| Width - Outer Edges [y] | 0.72 in |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.96 | |
Description
General part information
A18-12
Ring Terminal Connector Circular 16-22 AWG Crimp
