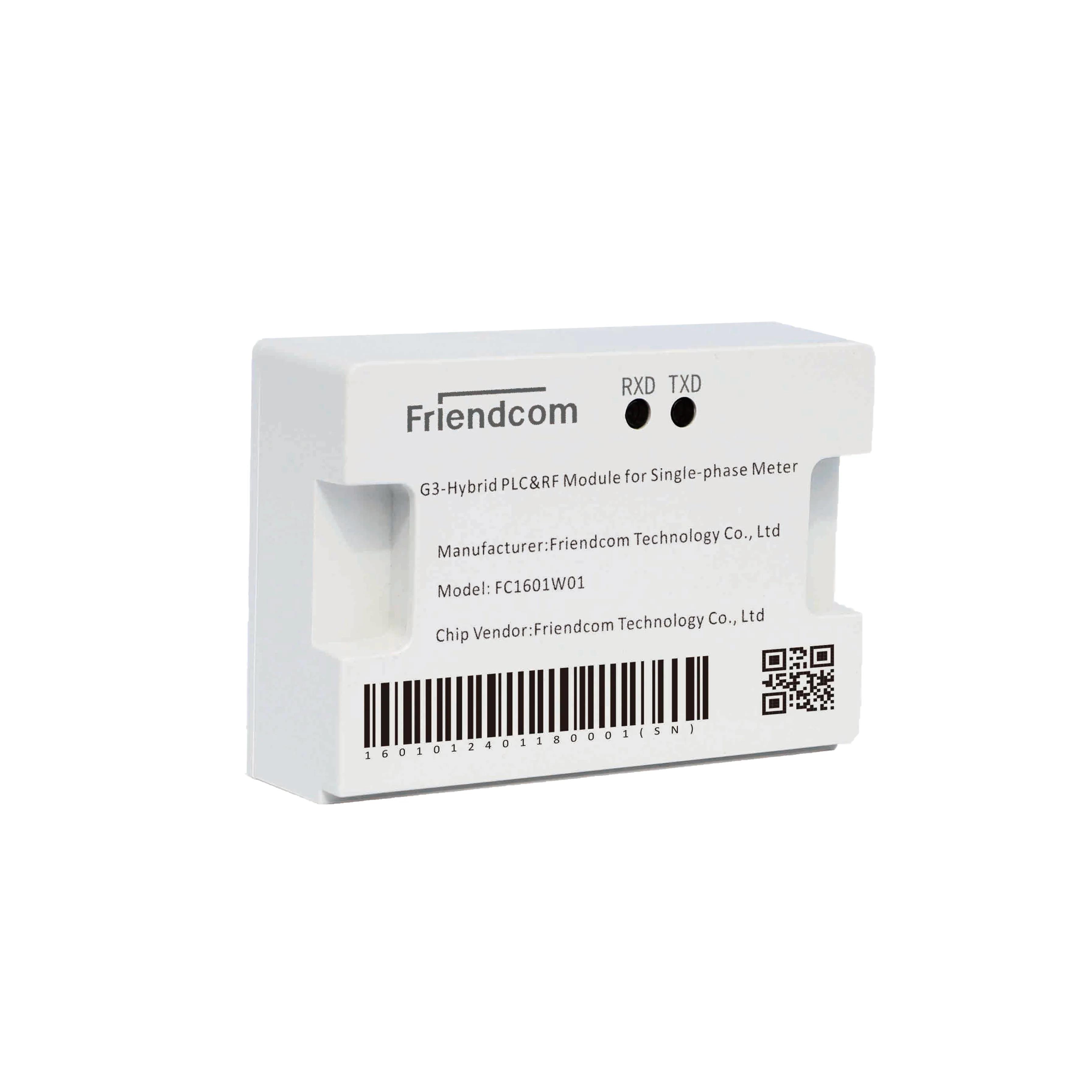

FC1601W01
ActiveFriendcom Wireless
G3 HYBRID MODULE 1 PHASE METER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FC1601W01
ActiveFriendcom Wireless
G3 HYBRID MODULE 1 PHASE METER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FC1601W01 |
|---|---|
| Applications | Industrial, Smart Appliances |
| Data Rate (Max) | 400 kbps |
| Frequency [Max] | 90.625 kHz, 870 MHz, 487.5 kHz, 928 MHz, 121.875 kHz, 403.125 kHz |
| Frequency [Min] | 98.437 kHz, 35.937 kHz, 902 MHz, 154.687 kHz, 863 MHz |
| Function | PLC, RF Module |
| Interface | SPI, Digital, I2C, UART, Connector |
| Modulation or Protocol | 802.15.4, 6LoWPAN |
| Power - Output | 20 dBm |
| Sensitivity | -109 dBm |
| Voltage - Supply [Max] | 13.5 V |
| Voltage - Supply [Min] | 10.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 64.99 | |
| 10 | $ 54.60 | |||
| 25 | $ 50.05 | |||
| 50 | $ 46.80 | |||
| 100 | $ 43.55 | |||
Description
General part information
FC1601W01
RF PLC, RF Module 35.937kHz ~ 90.625kHz, 98.437kHz ~ 121.875kHz, 154.687kHz ~ 403.125kHz, 154.687kHz ~ 487.5kHz, 863MHz ~ 870MHz, 902MHz ~ 928MHz 6LoWPAN, 802.15.4 Connector, Digital, I2C, SPI, UART 400kbps
