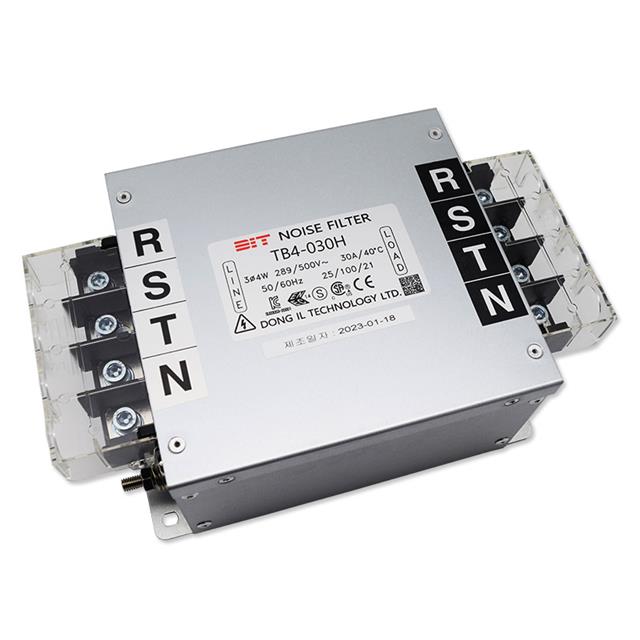

TB4-030H
ActiveDIT
LINE FILTER 30A CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB4-030H |
|---|---|
| Applications | General Purpose |
| Approval Agency | ENEC, SEMKO, CSA, CE |
| Configuration | Single Stage |
| Current | 30 A |
| Filter Type | Three Phase (Wye) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 290 V |
| Voltage - Rated AC (Phase to Phase) | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 200.77 | |
| 10 | $ 170.68 | |||
| 25 | $ 160.01 | |||
| 50 | $ 156.03 | |||
Description
General part information
TB4-030H
Three Phase (Wye) EMC/EMI Line Filter 30 A 50 ~ 60Hz Single Stage Terminal Block
