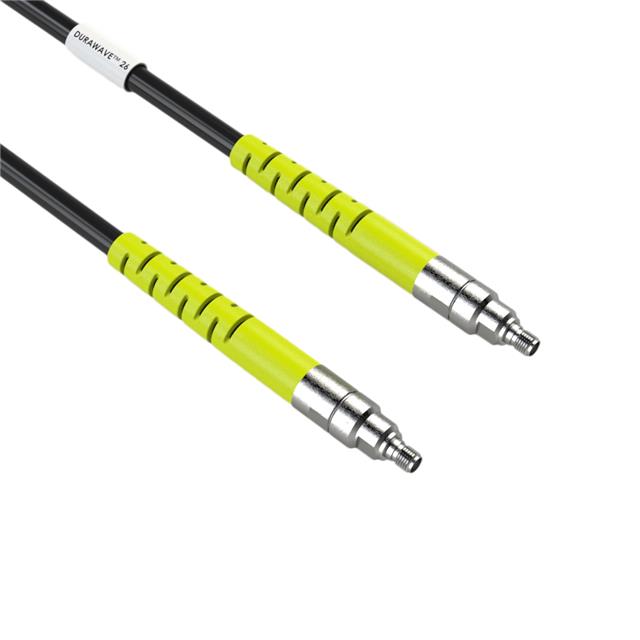

400-0135-00
ActiveSwift Bridge Technologies
CBL ASSY SMA JACK TO JACK 23.62"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
400-0135-00
ActiveSwift Bridge Technologies
CBL ASSY SMA JACK TO JACK 23.62"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 400-0135-00 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded Stainless Steel, Ruggedized, Test Cable, Armored Cable |
| Frequency - Max [Max] | 26.5 GHz |
| Length | 600 mm |
| Length | 23.62 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 446.00 | |
| 6 | $ 399.00 | |||
| 11 | $ 375.00 | |||
Description
General part information
400-0135-00
Cable Assembly Coaxial SMA to SMA 23.62" (600.00mm)
Documents
Technical documentation and resources
