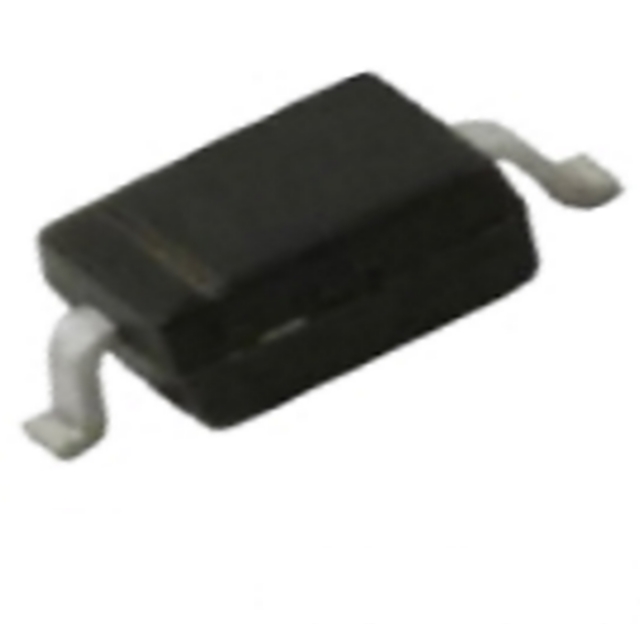

BZT52B15S
ActiveRectron USA
DIODE ZENER 15V 500MW SOD323
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BZT52B15S
ActiveRectron USA
DIODE ZENER 15V 500MW SOD323
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BZT52B15S |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 30 Ohms |
| Mounting Type | Surface Mount |
| Package / Case | SOD-323, SC-76 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOD-323 |
| Tolerance | 2 % |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
| Voltage - Zener (Nom) (Vz) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.05 | |
Description
General part information
BZT52B15S
Zener Diode 15 V 500 mW ±2% Surface Mount SOD-323
