0820-0004 - 0820-0004

0820-0004

Active
ENERSYS

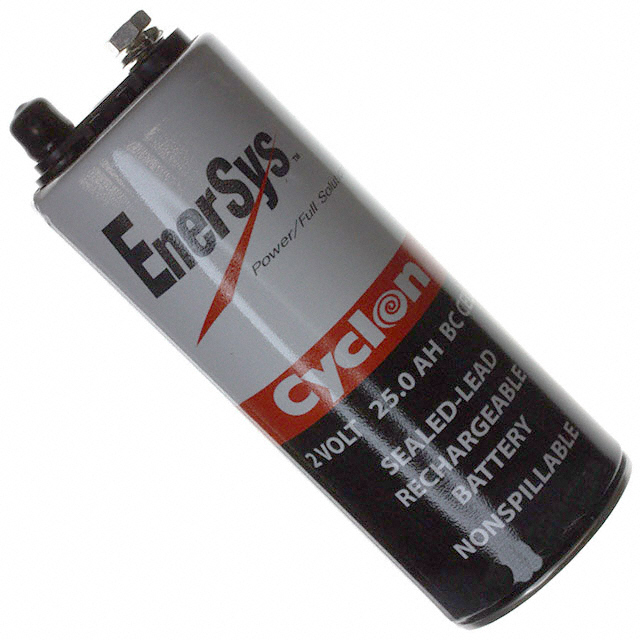

RECHARGEABLE BATTERY, CYCLON SERIES, 2 V, LEAD ACID, 25 AH, BC, BC, STUD

Deep-Dive with AI

Search across all available documentation for this part.

0820-0004 - 0820-0004

0820-0004

Active
ENERSYS

RECHARGEABLE BATTERY, CYCLON SERIES, 2 V, LEAD ACID, 25 AH, BC, BC, STUD

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification0820-0004
Battery ChemistrySealed Lead Acid (SLA, VRLA)
Capacity25 Ah
Discharge Rate10 Hr
Shelf Life12 Months
Size / Dimension [diameter]2.57 in
Size / Dimension [diameter]65.3 mm
Size / Dimension [z]158.8 mm
Size / Dimension [z]158.75 mm
Termination StyleThreaded Post, M6 and M8
Voltage - Rated2 VDC
Weight1700 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 154.05
16$ 127.71
NewarkEach 1$ 162.70
10$ 143.18

Description

General part information

0820-0004

The 0820-0004 is a 2V/25Ah 1-cell Rechargeable Battery features a lead-acid technology. It features stud terminals. There is no need to limit the inrush current to the battery during constant voltage charging. The low internal resistance of EnerSys CYCLON single cell allows for large inrush current without damage. Since not all of the charge returned is accepted to replenish the electro-chemical potential, a good rule of thumb to use is that the charge returned should be 105 to 110% of the capacity delivered on the previous discharge.
