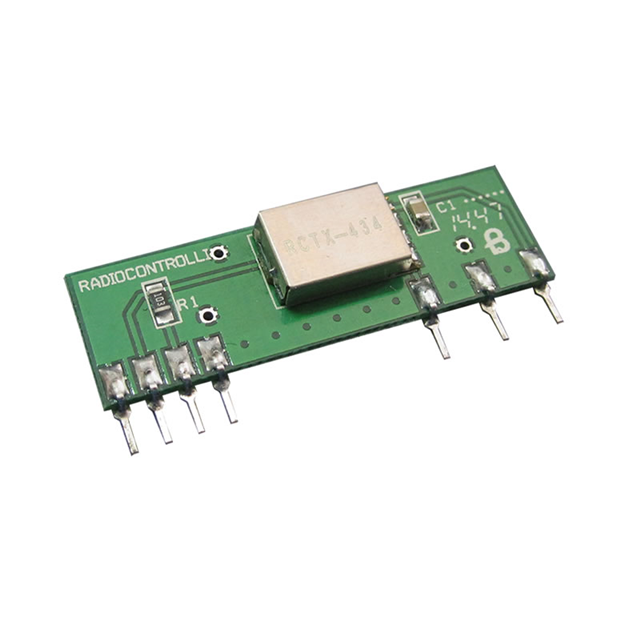

RCBTX-434
ActiveRadioControlli
433.92MHZ AM TRANSMITTER MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCBTX-434
ActiveRadioControlli
433.92MHZ AM TRANSMITTER MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCBTX-434 |
|---|---|
| Antenna Connector | Through Hole |
| Applications | General Purpose |
| Current - Transmitting | 21 mA |
| Data Rate (Max) | 50 kbps |
| Frequency | 433.92 MHz |
| Modulation or Protocol | ASK, OOK |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 15-SIP Module, 7 Leads |
| Power - Output | 11 dBm |
| Voltage - Supply [Max] | 3.6 V, 12 V |
| Voltage - Supply [Min] | 2.2 V, 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 4 | $ 18.00 | |
| 12 | $ 9.00 | |||
| 20 | $ 7.00 | |||
Description
General part information
RCBTX-434
RF Transmitter ASK, OOK 433.92MHz 11dBm 50kbps Through Hole Antenna 15-SIP Module, 7 Leads
