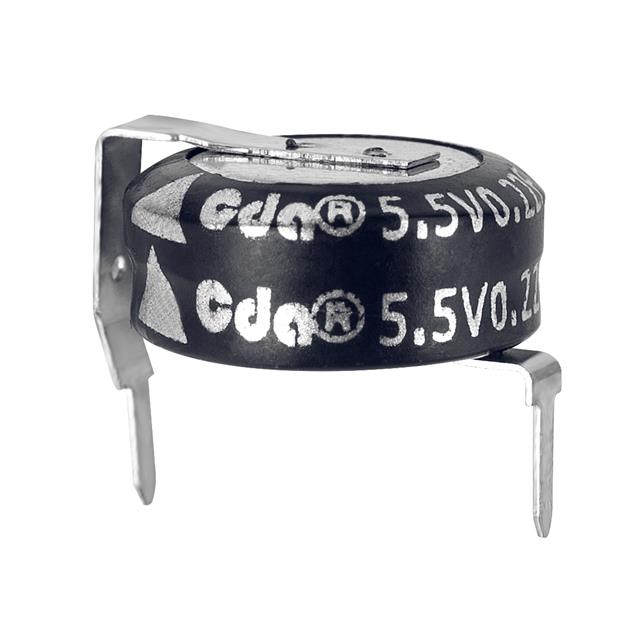

CBS5R5224HF-ZJ
ActiveZhi Feng Wei Technology
CAP 0.22F -20% +80% 5.5V T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBS5R5224HF-ZJ
ActiveZhi Feng Wei Technology
CAP 0.22F -20% +80% 5.5V T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBS5R5224HF-ZJ |
|---|---|
| Capacitance | 220 mF |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can - Horizontal |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Termination | PC Pins |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.04 | |
| 10 | $ 1.31 | |||
| 50 | $ 1.01 | |||
| 100 | $ 0.92 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.71 | |||
| 2500 | $ 0.66 | |||
| 5000 | $ 0.63 | |||
Description
General part information
CBS5R5224HF-ZJ
220 mF (EDLC) Supercapacitor 5.5 V Axial, Can - Horizontal
