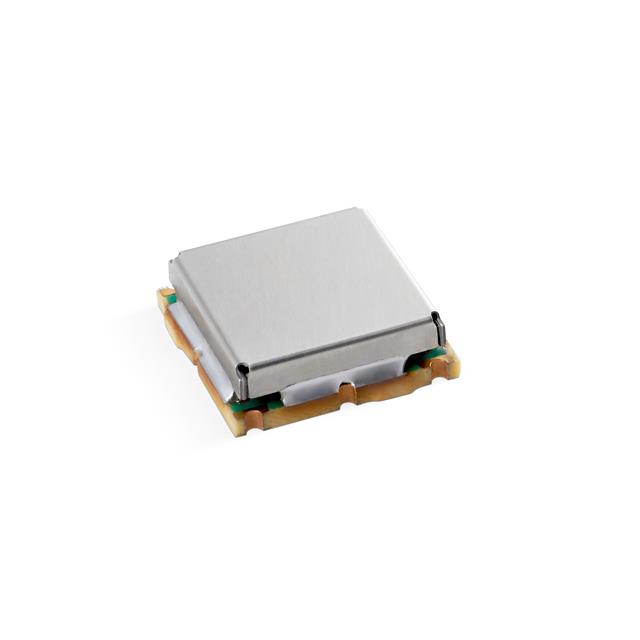

SMV2278A-LF
ActiveZ-Communications, Inc.
VCO FREQUENCY 2275 MHZ - 2280 M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMV2278A-LF
ActiveZ-Communications, Inc.
VCO FREQUENCY 2275 MHZ - 2280 M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMV2278A-LF |
|---|---|
| 2nd Harmonic, Typ (dBc) | -10 dBc |
| Frequency - Center | 2277 MHz |
| Frequency Range [Max] | 2280 MHz |
| Frequency Range [Min] | 2275 MHz |
| Height [z] | 0.11 in |
| Height [z] | 2.79 mm |
| Icc Max | 16 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Phase Noise Typ (dBc/Hz) | -91 dBc/Hz |
| Power (dBm) | 4.5 dBm |
| Pushing (MHz/V) | 6 MHz/V |
| Size / Dimension [x] | 7.62 mm |
| Size / Dimension [x] | 0.3 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.62 mm |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 20.85 | |
| 100 | $ 18.95 | |||
Description
General part information
SMV2278A-LF
2277MHz Center Frequency Voltage Controlled Oscillator 4.5 ±2.5 dBm -10 2nd Harmonic Typ (dBc)
