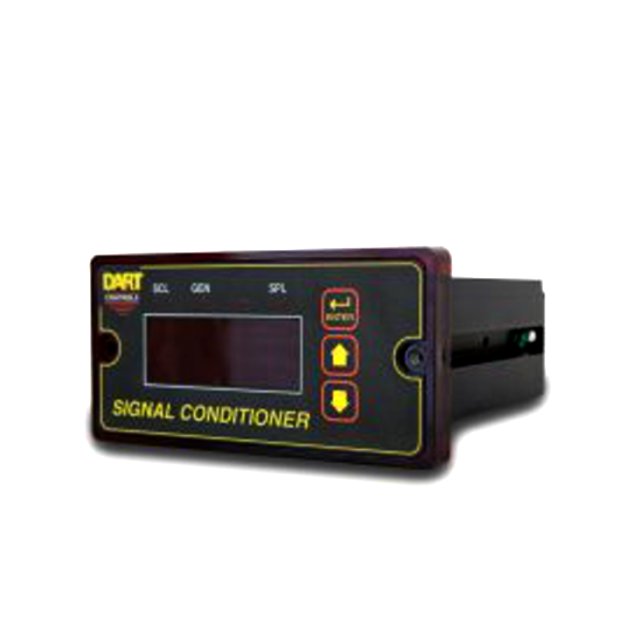

DP10
ActiveDart Controls
SIGNAL CONDITIONER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DP10 |
|---|---|
| Features | Excitation Supply |
| Input Range (Additional) [Max] | 20 mA, 5 VDC |
| Input Range (Additional) [Min] | 4 mA, 0 VDC |
| Input Range (Current, Voltage) [Max] [custom] | 5 V |
| Input Range (Current, Voltage) [Max] [custom] | 20 mA |
| Input Range (Current, Voltage) [Min] [custom] | 4 mA |
| Input Range (Current, Voltage) [Min] [custom] | 0 V |
| Input Type | Voltage, Current |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -10 °C |
| Output Range [Max] | 20 VDC, 20 mA |
| Output Range [Min] | 0.1 VDC, 4 mA |
| Output Type | Current, Voltage |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply [Max] | 265 VAC |
| Voltage - Supply [Min] | 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 71.60 | |
| Bulk | 1 | $ 438.00 | ||
| 2 | $ 416.10 | |||
Description
General part information
DP10
SIGNAL CONDITIONER
