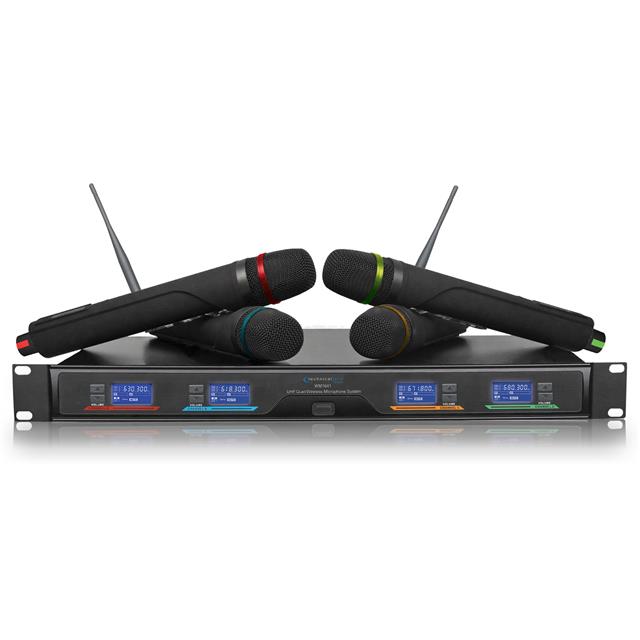

TPWM1641
ActiveTechnical Pro
MIC ANLG CARDIOID 19"LX9.500"W
Deep-Dive with AI
Search across all available documentation for this part.
TPWM1641
ActiveTechnical Pro
MIC ANLG CARDIOID 19"LX9.500"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPWM1641 |
|---|---|
| Direction | Cardioid |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 40 Hz |
| Height (Max) [Max] | 44.45 mm |
| Height (Max) [Max] | 1.75 in |
| Output Type | Analog |
| Port Location | Bottom |
| Size / Dimension [x] | 19 " |
| Size / Dimension [x] | 482.6 mm |
| Size / Dimension [y] | 241.3 mm |
| Size / Dimension [y] | 9.5 " |
| Termination | Solder Pads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TPWM1641
40 Hz ~ 20 kHz Analog Microphone Cardioid () Solder Pads
Documents
Technical documentation and resources
No documents available
