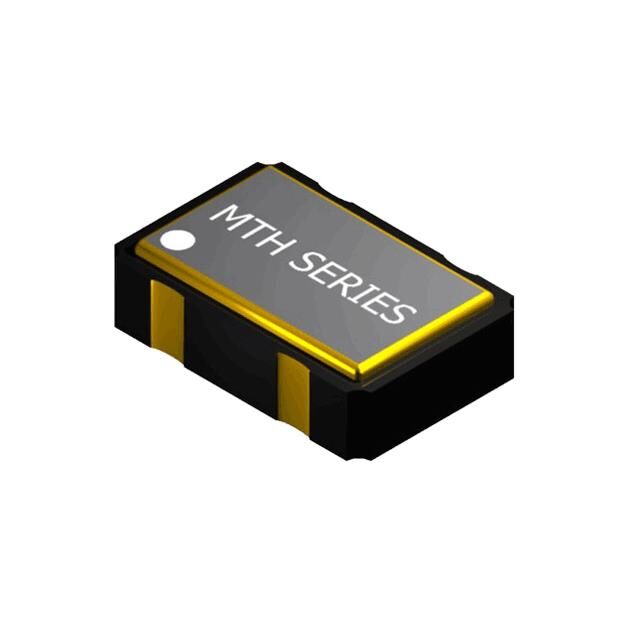

MTH302548AH-25.000MHZ-T
ActiveMMD
4 PAD CERAMIC PACKAGE, 5.0 MM X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTH302548AH-25.000MHZ-T
ActiveMMD
4 PAD CERAMIC PACKAGE, 5.0 MM X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTH302548AH-25.000MHZ-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 16 mA |
| Frequency | 25 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) | 1.6 mm |
| Height - Seated (Max) [Max] | 0.063 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.205 in |
| Size / Dimension [x] | 5.2 mm |
| Size / Dimension [y] | 0.134 in |
| Size / Dimension [y] | 3.4 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.06 | |
| 10 | $ 1.79 | |||
| 50 | $ 1.62 | |||
| 100 | $ 1.55 | |||
| 500 | $ 1.41 | |||
| Digi-Reel® | 1 | $ 2.06 | ||
| 10 | $ 1.79 | |||
| 50 | $ 1.62 | |||
| 100 | $ 1.55 | |||
| 500 | $ 1.41 | |||
| Tape & Reel (TR) | 1000 | $ 1.13 | ||
Description
General part information
MTH302548AH-25.000MHZ-T
25 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
